Mountain Bike Sizing Guide

Use your height and inseam to shortlist a mountain-bike size, not to make the final decision. The manufacturer’s chart for the exact model is the correct starting point because frame geometry and size labels vary between brands and even between models from one brand.

If two sizes overlap, compare reach, stack, standover, wheel clearance, and the available test ride. Do not choose from wheel size alone.

Measure height and inseam

Measure in socks or bare feet on a level floor.

Height

Stand with your back against a wall and look straight ahead. Have another person mark the top of your head, then measure from the floor to the mark.

Cycling inseam

1. Stand with your feet about 6 to 8 inches apart.
2. Place a hardback book between your legs with its spine upward.
3. Raise it until it makes firm contact like a bicycle saddle, without forcing it.
4. Keep the book level.
5. Measure from the floor to the top edge of the book.
6. Repeat the measurement and use the consistent result.

Your trouser inseam is not precise enough for this job.

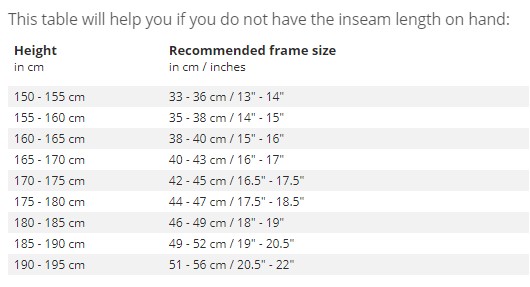

Use the exact model’s size chart

Enter both measurements into the brand’s chart when it requests them. Trek’s mountain-bike sizing guide explains why modern fit is better described by reach and effective top-tube length than by seat-tube length alone.

Size names such as S, M, L, and XL are not standardized. A medium trail bike can fit differently from a medium cross-country bike because the head angle, seat-tube angle, reach, stack, stem, and handlebar all shape the riding position.

Check standover clearance

Stand over the top tube with both feet flat on the floor. You need enough room to dismount safely on the terrain you ride. A sharply sloping top tube changes where the meaningful clearance is measured, so use the manufacturer’s standover figure and test the bike instead of applying one universal number.

If the frame contacts your body while you stand flat-footed, do not assume a shorter seatpost or smaller wheels will solve the fit. Try the next smaller frame or another model.

Understand reach and stack

Reach is the horizontal distance from the bottom bracket to the top-center of the head tube. It helps describe how long the bike feels while standing on the pedals.

Stack is the vertical distance between those same reference points. It helps describe how tall the front of the bike is.

Longer reach generally creates more room and stability but can feel stretched. Shorter reach can feel easier to maneuver but cramped when it is too short. Stem length and handlebar position can fine-tune a correct frame; they should not be used to rescue a clearly wrong size.

Check the seated position

Set the saddle near level and adjust its height so the knee retains a slight bend at the bottom of the pedal stroke. Keep the seatpost at or below its minimum insertion line.

You should be able to:

• Reach the brake levers without rotating the wrist into an extreme angle
• Bend the elbows instead of locking them
• Shift body position without hitting the saddle or handlebar
• Turn the handlebar without the knee striking it during normal pedaling
• Lower the saddle enough for descending, especially when using a dropper post

Saddle position changes the relationship to the pedals. Do not slide the saddle far outside its rail markings just to shorten or lengthen the cockpit.

Wheel size and frame size are different

Wheel size describes the wheel and tire system. Frame size describes the rider fit and geometry. Adult mountain bikes commonly use 27.5- or 29-inch wheels, and some size ranges use both.

Smaller frames may use smaller wheels to preserve clearance and handling. Larger wheels can improve rollover, but they do not automatically fit a taller or shorter rider. Choose the frame first, then evaluate the wheel option offered in that size. Once the bike fits, use the mountain-bike tire pressure guide to choose a setup-specific starting point rather than copying a generic PSI.

When you are between two sizes

Compare the geometry table and ride both if possible.

The smaller size may suit a rider who prioritizes a shorter cockpit and active handling, provided the seatpost, standover, and pedaling position remain correct. The larger size may suit a rider who wants more room and stability, provided it does not feel stretched or compromise safe dismounting.

Body proportions matter. Two riders with the same height can have different inseams, torso lengths, arm lengths, mobility, and preferences.

Test-ride checklist

Before buying:

1. Set the saddle height within the post’s safe range.
2. Confirm standover clearance.
3. Ride seated and standing.
4. Brake firmly in a safe area.
5. Make slow, tight turns in both directions.
6. Ride a short incline if the seller permits it.
7. Check that hands, feet, knees, back, and neck remain comfortable.

Do not buy a painful or unstable fit on the promise that you will “get used to it.” Small contact-point adjustments are normal; a wrong frame size is expensive to correct.

Online purchase checklist

• Use the chart for the exact model and model year.
• Compare your height and inseam with the listed range.
• Read the reach, stack, and standover measurements.
• Confirm the wheel size supplied with that frame size.
• Check dropper-post insertion and saddle-height range when relevant.
• Understand assembly, return, and exchange terms.
• Arrange a professional setup if you cannot verify a safety-critical assembly step.

After delivery, complete our new mountain-bike setup checklist before the first ride. The broader mountain-bike buying hub connects sizing with current budget and model guides.

Bottom line

Height and inseam narrow the options. The exact model’s geometry, standover, reach, saddle range, and a test ride decide the size. When the fit remains uncertain, a qualified bike fitter or experienced shop is more reliable than a generic height table.

Last reviewed: July 26, 2026.
