Motorized Bicycle Mag Wheel Safety and Compatibility Guide
No mag wheel is safe for every motorized bicycle. Match the exact rim, tire, axle, brake, sprocket, load, speed rating, and frame before installation.

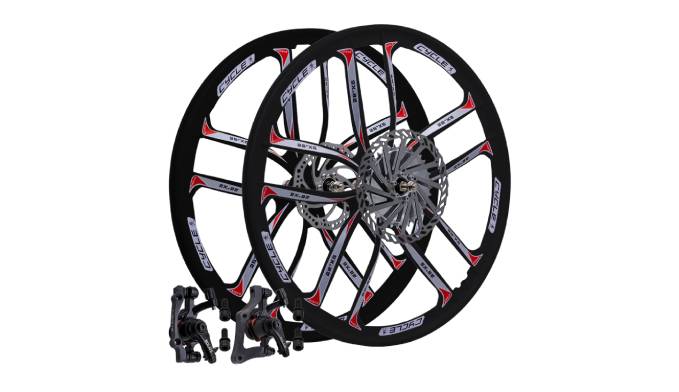

There is no universally safe mag wheel for a motorized bicycle. As of August 19, 2026, BikeBerry’s exact BBR Tuning 26-inch Heavy Duty 10-Spoke STAR set remains available to add to a cart under SKU BBR-STRWHL-BLK. That makes it a product worth investigating, not a blanket recommendation. A buyer still has to reconcile the exact rim, tire, axle, dropout, brake, sprocket, chainline, load, speed, and frame interfaces before installation.
This guide is research-based. We did not laboratory-test wheels. The August 19 refresh rechecked exact inventory, seller-published interface data, and the missing load, speed, rotor, and axle measurements that prevent a universal recommendation.
Current availability and evidence decision
| Exact listing | Status checked August 19 | Seller-published facts | Editorial decision |
|---|---|---|---|
| BBR Tuning 26-inch Heavy Duty 10-Spoke STAR set, SKU BBR-STRWHL-BLK | Add to cart | 26 × 1-inch rim label; 7.5-inch axle width; 26 × 1.5-1.95 tires with Schrader valves; disc brake only; 36-tooth engine sprocket | Qualified only for a documented fit investigation |
| BBR Tuning 26-inch Heavy Duty 3-Spoke set | Product/search visibility present | Separate product and interface record | Research lead only; do not transfer the 10-spoke specifications |
| BBR Tuning 12-gauge rim set | Product/search visibility present | Conventional spoked rim set | Alternative construction to investigate, not an equivalent substitute |
The 10-spoke page currently exposes an Add to cart control, price, SKU, wheel and tire dimensions, brake type, and included sprocket size. It does not publish a complete over-locknut dimension, axle diameter and thread, maximum static or dynamic system load, or a validated finished-vehicle speed rating. Those omissions prevent a safe fit verdict from the listing alone.
The listing is a starting point, not an installation approval.
What the seller’s dimensions do—and do not—prove
The stated 26 × 1-inch rim label and 26 × 1.5-1.95 tire range narrow the tire search. They do not establish the bead-seat diameter, approved pressure range, tube and rim-tape requirements, or clearance on a particular frame. Confirm those details for the exact selected variant before buying tires.
The stated 7.5-inch “axle width” is also incomplete. It may not mean hub over-locknut dimension, dropout spacing, total axle length, or usable threaded length. Measure the bicycle and obtain the seller’s measurement points, axle diameter, thread pitch, washer stack, and retention instructions. A nominal width match is not enough if the nuts cannot fully engage or if the chainline moves out of alignment.
The page says disc brake only and warns against rim brakes. Treat that warning as a hard exclusion. The seller describes six stud ports and included disc hardware, but “nearly any” rotor is not a specification. Confirm rotor diameter, thickness, bolt circle, fastener grade and engagement, caliper mount, adapter, fork/frame clearance, and whether the included parts match the exact color or configuration shipped.
The included 36-tooth motor sprocket identifies a drive component; it does not validate engine size, chain pitch, chainline, gearing, braking performance, or legal road use. Never drill, machine, or improvise a sprocket attachment to a cast wheel without a written procedure from the wheel manufacturer for that exact part.
Load and speed remain unresolved
BikeBerry markets the set for speed, but the page does not state a validated maximum finished-vehicle speed. It also does not state a total load limit covering rider, bicycle, engine, fuel, cargo, impact, braking, and drive loads. We therefore do not convert promotional durability language into an engineering rating.
Ask the seller or manufacturer for the exact load and speed documentation in writing. If they cannot supply it, do not infer a limit from appearance, review count, price, metal construction, or a similar wheel. Added motor mass and drive torque change the wheel system, while potholes, cornering, braking, and chain pull add dynamic loads that a static rider-weight guess cannot capture.
Current BikeBerry research links
Affiliate disclosure: BikeRideReview may earn a commission if you buy through these BikeBerry links. These links are research starting points. They do not certify compatibility or safety.
BBR Tuning 26-Inch Heavy Duty 10-Spoke Mag Wheel Set
Review the current BikeBerry listing for availability, specifications, options, and purchase terms.
Affiliate link · Opens BikeBerry in a new tab
Inspect the exact BBR Tuning 10-spoke listing
Before checkout, capture the exact title, SKU, selected color, availability, included hardware, brake interface, axle data, rim and tire standard, return terms, and intended use. A future product-page edit can materially change the fit decision.
BBR Tuning 26-Inch Heavy Duty 3-Spoke Mag Wheel Set
Review the current BikeBerry listing for availability, specifications, options, and purchase terms.
Affiliate link · Opens BikeBerry in a new tab
Inspect the separate BBR Tuning 3-spoke listing
Do not carry the 10-spoke SKU or specifications over to this listing. Verify its stock, axle, rim, tire, brake, sprocket, load, and speed evidence independently.
BBR Tuning Heavy Duty 12-Gauge Rim Set
Review the current BikeBerry listing for availability, specifications, options, and purchase terms.
Affiliate link · Opens BikeBerry in a new tab
Inspect the conventional BBR Tuning 12-gauge rim set
A spoked rim set is a different system, not a drop-in stand-in. Hub, spoke, lacing, tension, axle, brake, drive, tire, and frame compatibility still need to be documented.
Compatibility worksheet
Record these values side by side for the wheel and bicycle:
- bead-seat diameter, internal rim width, approved tire widths, tube valve, rim tape, and pressure range;
- front and rear dropout spacing, axle diameter, total and usable axle length, thread pitch, washers, and retention method;
- frame and fork material, dropout condition, and any manufacturer restrictions on motor conversions;
- rotor diameter, thickness, bolt pattern, fasteners, caliper mount, adapter, and full clearance;
- engine sprocket attachment, tooth count, chain pitch, chainline, tension range, and clearance;
- bearing type, adjustment procedure, service parts, and inspection interval;
- documented static and dynamic load limits and approved speed and intended use;
- tire, frame, fork, brake, cable, chain, and exhaust clearance through steering and suspension travel.
If any critical value is missing, pause the purchase. Do not solve an axle, brake, or sprocket mismatch by grinding, drilling, stacking improvised spacers, or relying on partially engaged nuts.
Legal and system-level checks
A gasoline-powered bicycle may be regulated as a motor-driven cycle rather than a bicycle. A retailer’s product description is not permission to ride on public roads. NHTSA has classified gasoline motorized bicycles made for public-road use as motor vehicles in past interpretations (NHTSA interpretation). Check the current state motor-vehicle agency and local land manager for licensing, registration, equipment, access, and helmet rules.
Wheel choice cannot compensate for weak brakes, an unsuitable frame, poor chain alignment, or an incompatible tire. Review the motorized-bicycle tire guide, chain-tensioner guide, engine-frame guide, and four-stroke kit guide as one system.
Cast versus spoked construction
Cast-style wheels eliminate spoke-tension adjustment, but they are not maintenance-free and generally cannot be trued like a conventional spoked wheel. Cracks, impact damage, bearing wear, mounting-surface damage, and distortion remain stop-riding faults.
Spoked wheels use serviceable spokes to support the rim, but their strength depends on the exact hub, rim, spoke gauge, lacing, tension, axle, and drive interface. Neither construction is automatically stronger or safer. The evidence for the exact finished assembly matters more than the category label.
Inspection and stop conditions
Before every ride, inspect axle retention, bearings, casting or rim, tire bead, rotor, caliper, sprocket, chainline, and surrounding clearances. Stop riding after an impact or whenever you find:
- a crack, bend, dent, or fresh impact mark;
- looseness at the axle, bearing, rotor, sprocket, or brake mount;
- tire-bead movement, a cut, bulge, or sidewall damage;
- brake rub caused by wheel movement or a changing lever feel;
- derailment, changing chain tension, or a chain approaching the frame;
- contact with the frame, fork, brake, cable, exhaust, or another moving part.
Our rear tire wobble guide covers ordinary bicycle causes. A motorized wheel, drive, or brake fault should be assessed by a qualified mechanic familiar with the exact conversion.
Verdict
The exact 10-spoke STAR listing is currently available and better documented than a generic marketplace result, but its published record is still incomplete. Do not call it compatible until the bicycle and wheel match across tire, axle, dropout, brake, sprocket, chainline, load, speed, and intended use. Missing load or validated speed data is a reason to stop, not a blank to fill with an assumption.
