Bike Reach Explained: Frame Reach, Rider Reach, and Fit

Bike reach is a frame geometry number, while rider reach depends on saddle, stem, bars, and posture. Learn how to compare both without guessing fit.

Bicycle handlebars and front wheel seen from above

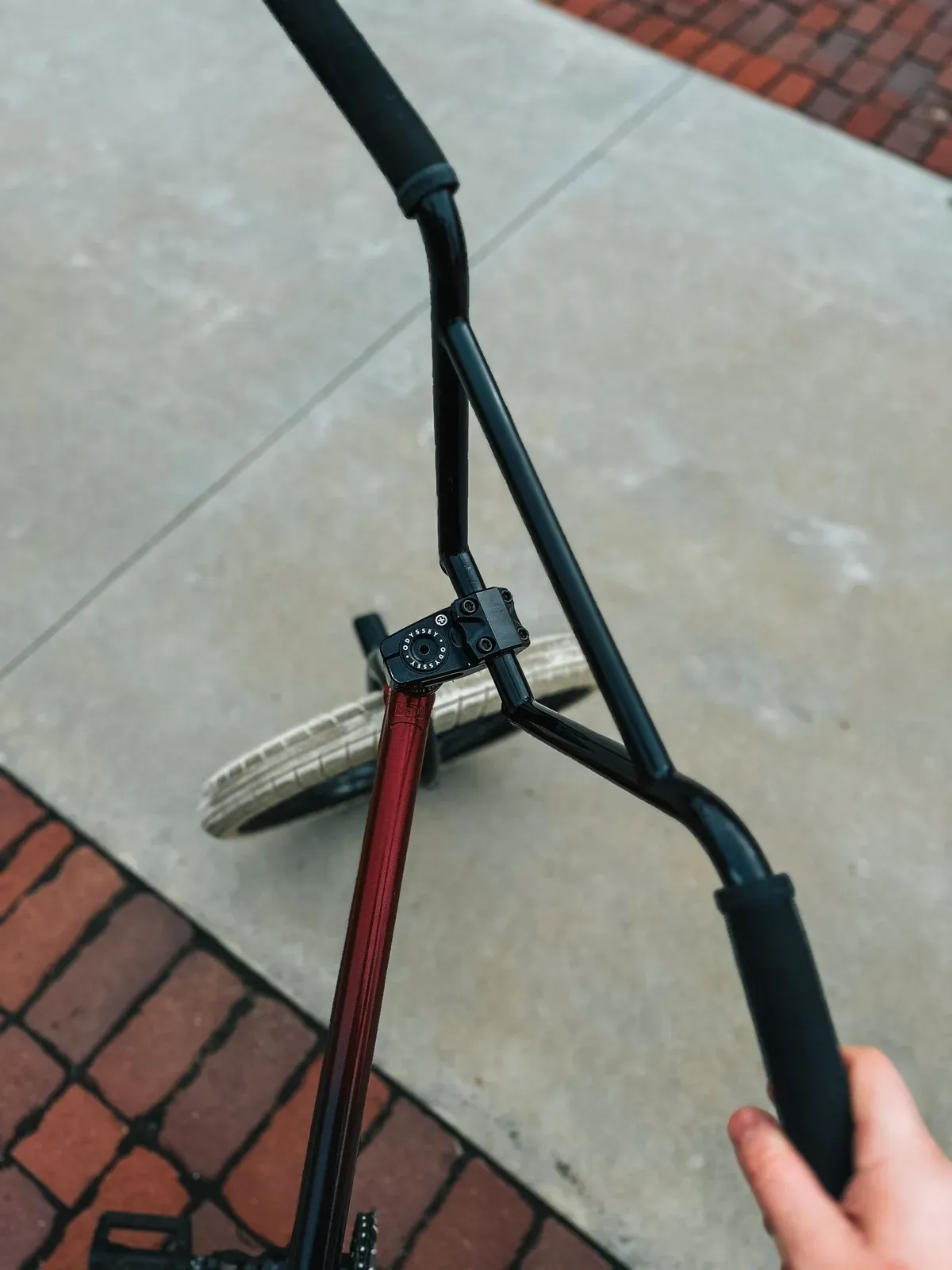

Context photograph: bicycle handlebars and front wheel seen from above. Photo source
#bike fit#bike geometry#bike sizing

Table of Contents

Bike reach is not one universal measurement. Frame reach is a geometry value that compares the bottom-bracket reference with the head-tube area. Rider reach is the distance and posture you experience from the saddle to the handlebars after stem, bar, saddle, spacer, and fit adjustments. Use frame reach to compare frames in the same geometry system, then check the complete cockpit and your intended riding position.

REI describes mountain-bike reach as a horizontal distance from the bottom-bracket center toward the head-tube center and says it is increasingly useful for describing standing length. Park Tool measures road-positioning reach from the saddle tip to the handlebar center, a different on-bike reference (REI, “Mountain Bike Fit”, retrieved September 2, 2026; Park Tool, “Road Positioning Chart”, retrieved September 2, 2026).

Key Takeaways

  • Frame reach compares the frame; it does not tell you the final saddle-to-bar distance.
  • Rider reach changes with saddle position, stem, handlebar shape, spacers, and posture.
  • Compare reach with stack, standover, inseam, and the maker’s size chart.
  • Change one fit variable at a time and remain within manufacturer limits.

Frame reach versus rider reach

Frame reach belongs to the bicycle’s geometry table. Rider reach belongs to the assembled bicycle and the rider’s position. A frame with a longer reach can still feel manageable with a different stack, bar shape, or riding posture, while a short frame can feel stretched if its saddle and cockpit are set far forward.

Frame reach versus rider reach
TermReferenceUse it for
Frame reachBottom-bracket reference toward the head tubeComparing frames in the same model or category
Rider reachContact-point distance from saddle area to handlebar areaDescribing the position you actually ride
Effective top tubeHorizontal seated-length indicatorComparing traditional road and hybrid geometry
Stem lengthComponent between steerer and barA fit adjustment with handling consequences
StackBottom-bracket reference to front-end heightReading reach together with handlebar height

The references use different points and purposes. Do not subtract a catalog reach from a measured saddle-to-bar distance and call the remainder a stem length. Confirm the manufacturer’s diagram before comparing numbers.

The frame-size and wheel-size guide explains why reach cannot be inferred from wheel diameter or a small, medium, or large label. A wheel may be shared by several frame sizes with very different front-end dimensions.

Why reach must be read with stack

Reach describes horizontal frame length at a defined vertical reference, while stack describes front-end height at that reference. Two frames can have similar reach but produce different postures if one has considerably more stack. Likewise, a stem, spacer, bar rise, or bar drop can change the rider’s position without changing frame reach.

REI lists reach and effective top tube alongside standover and seat height as geometry indicators, and its road-bike guidance says bike length from the seat to the handlebars is a critical fit factor (REI, “Bike Sizing and Fit”, retrieved September 2, 2026; REI, “How to Choose a Road Bike”, retrieved September 2, 2026). Read reach as one coordinate in a two-dimensional fit picture.

The practical questions are:

  • Can you reach the bars without locking your elbows or rounding into discomfort?
  • Can you support your torso without putting excessive weight on your hands?
  • Can you see and operate the brakes and controls in the intended position?
  • Does the position match the bicycle’s road, trail, commuting, or cargo use?

There is no ideal reach value without the rider, bicycle category, and position. A relaxed hybrid, endurance road bike, and downhill-oriented mountain bike deliberately place the rider differently.

How to compare frame reach on a geometry chart

Compare reach only when the manufacturer defines it consistently across the models and sizes. Save the model year and size, because geometry can change between generations even when the name stays the same. Trek’s Marlin information shows how frame sizes are paired with geometry and wheel choices, and its longer sizes have different reach values from smaller sizes (Trek, “Marlin Mountain Bikes”, retrieved September 2, 2026).

Use this process:

  1. Identify the exact model, generation, wheel option, and size.
  2. Record reach and stack from the same geometry table.
  3. Record the maker’s rider height and inseam range.
  4. Compare the numbers with a bike that fits, if the measurement references match.
  5. Check standover, seat-tube length, saddle range, stem, bar, and brake-control position.

Do not use a reach value from a road bike to choose a mountain-bike frame. Different geometry conventions and riding postures make the raw numbers poor substitutes across categories. The mountain-bike size guide is a model-specific buying example, not a cross-category conversion table.

How components change rider reach

Frame reach is fixed for a given frame, but rider reach is adjustable within limits. The adjustment changes the weight distribution, steering response, saddle position, or control access, so it is not a free correction for a wrong frame.

Stem length and angle

A longer stem can move the bars forward; a shorter stem can bring them closer. On a mountain bike, stem length also changes steering leverage and handling. On any bike, respect steerer, stem, handlebar, and torque requirements. Trek’s owner manual warns that stem or headset work requires the correct tools, training, and torque because an incorrect connection can cause a fall (Trek, “Bicycle Owner’s Manual,” PDF, retrieved September 2, 2026).

Handlebar shape and width

Drop-bar reach depends on the bar’s model and the chosen hand position. Flat bars, backsweep, rise, and grips alter the hands’ location relative to the steerer. Replace a handlebar only when its clamp, width, cable length, and maker limits are compatible. A bar can change hand position while leaving the frame reach untouched.

Saddle position

Moving a saddle fore or aft changes knee position, pedaling posture, and the distance to the bars. It should not be used to chase a reach number without checking saddle height and knee comfort. Park Tool’s saddle guidance treats height, fore-aft, and angle as separate adjustments and keeps the rails within their marked limits (Park Tool, “How to Adjust a Bike Saddle and Seatpost”, retrieved September 2, 2026).

Spacers and bar height

Spacers and bar rise change stack and the rider’s torso angle. They can make the same frame feel less stretched without changing the horizontal frame reach, but the steerer and stem must remain within maker limits. A higher bar is not automatically a better fit; it changes pressure distribution and handling.

Reach for road, hybrid, and mountain bikes

Reach has different practical meanings across categories. A road rider may compare seated cockpit length and drop-bar positions. A hybrid rider may prioritize a stable upright posture and brake access. A mountain biker may evaluate standing control, room to move, and handling on steep terrain.

Road bikes

Road-bike fit should be read through reach, stack, effective top tube, saddle position, bar shape, and intended drop. REI says a correct frame size is only a starting point and that a complete fit also considers seat height, horizontal position, reach, drop, and body angles (REI, “How to Choose a Road Bike”, retrieved September 2, 2026). Do not compare a single reach value without the stack and cockpit.

Hybrid bikes

Hybrid reach should support the rider’s actual use: commuting, errands, recreation, or mixed surfaces. Check the bar height, brake-lever access, rack and bag position, and the room needed for clothing. A bike that is numerically short can still feel cramped with a high saddle or crowded bar; a bike that is long can be tiring in stop-and-go traffic. The hybrid bike guide covers the broader choice.

Mountain bikes

Mountain-bike reach increasingly describes standing length, but it cannot predict fit by itself. Compare wheel size, stack, head angle, seat angle, standover, suspension setup, and the intended terrain. A rider who moves behind the saddle needs usable space, yet a longer reach can also demand more control and body movement. Check a complete bike position rather than chasing the longest number.

E-bikes and conversions

Battery placement, added mass, display position, cable routing, and a conversion’s motor hardware can change the final cockpit and handling. Do not use a stem change to hide an uncertain conversion interface. The electric-bike conversion guide covers the frame, fork, brake, battery, and system checks that come before fit refinement.

How to tell whether reach is too long or too short

Reach is too long when the rider cannot maintain a relaxed, controlled posture within the intended hand position, or when controls require an unsafe stretch. Reach is too short when the rider feels cramped, cannot support the intended position, or loses usable room to move. These signs are diagnostic prompts, not a distance threshold.

Check one change at a time:

  1. Confirm the saddle height and fore-aft position are within the maker’s limits.
  2. Confirm the bars, stem, and spacers are installed and torqued correctly.
  3. Check brake-lever and shifter access in the position you actually use.
  4. Compare the rider’s posture at low speed on a safe, controlled surface.
  5. Ask a qualified fitter or shop to assess the exact frame if discomfort remains.

Do not shorten or lengthen the stem beyond the maker’s component guidance, cut a steerer without training, or move the saddle until it compromises pedaling. A frame-size problem should be solved with the right frame, not an extreme component position.

Reach when you are between frame sizes

When a size chart overlaps, compare the candidate frames’ reach and stack with your current bike and use. The between-bike-sizes guide covers the choice directly. Before deciding, use the inseam measurement guide and standover check to document the other fit constraints.

In general, a shorter reach may be easier to control in a compact or upright position, while a longer reach may create room for a stretched or standing position. That is a fit tradeoff, not a rule about which size is better. Ask the manufacturer for model-specific sizing support, especially when wheel size, suspension travel, or unusual proportions are involved.

Frequently asked questions

Is bike reach the same as top-tube length?

No. Reach is a geometry measurement with a specified bottom-bracket and head-tube reference. Effective top tube is a horizontal seated-length indicator, while actual rider reach includes the saddle, stem, bar, and posture. Use the manufacturer’s definitions before comparing numbers.

Is a longer bike reach better?

Not automatically. A longer frame can provide room for a particular standing or seated position, but it may be harder to control or too stretched for another rider. Compare reach with stack, inseam, standover, saddle range, and intended use. The best value is the one that supports safe control within the maker’s fit range.

Can I fix a short reach with a longer stem?

Sometimes a modest component adjustment is appropriate, but a longer stem changes handling and must remain within the stem, steerer, bar, cable, and torque limits. It is not a substitute for a frame that is clearly too short. Have a qualified shop review a major fit change.

Can moving the saddle fix reach?

Moving the saddle changes pedaling position and knee relationship as well as the distance to the bars. Keep height, fore-aft, angle, and rail markings within the maker’s limits. Set the saddle for pedaling first, then evaluate the cockpit rather than moving it solely to reach the bars.

Does reach matter more on a mountain bike?

Mountain-bike reach is useful because it helps describe standing length, but it is still one geometry value. Stack, head and seat angles, standover, wheel size, suspension setup, bar, stem, and rider movement matter too. Compare the whole geometry chart and the intended terrain.

How do I compare reach between brands?

Compare exact model-year geometry tables and confirm that the manufacturers use compatible definitions. Then compare stack, effective top tube, wheel size, seat angles, and cockpit parts. A raw reach number from one brand is not a reliable universal ranking against a different category or measurement convention.

How we researched this guide

This is research-based geometry guidance, not a professional fit session, component experiment, or ride comparison. We reviewed REI’s bicycle and mountain-bike fit explanations, Park Tool’s on-bike positioning references, Trek’s Marlin geometry information, and Trek’s owner manual. DataForSEO research on September 2, 2026 classified the exact reach query as informational and surfaced geometry explanations, forums, and videos; that search evidence informed the question structure, not the fit advice. We did not measure a rider or recommend an exact frame.

Bottom line

Use frame reach to compare frames with the same measurement definition. Use rider reach to evaluate the complete bicycle after saddle, stem, bar, spacers, and posture are set within their limits. Read reach with stack, inseam, standover, saddle range, controls, and intended use. If the position needs an extreme adjustment, revisit the frame choice or ask a qualified fitter.
