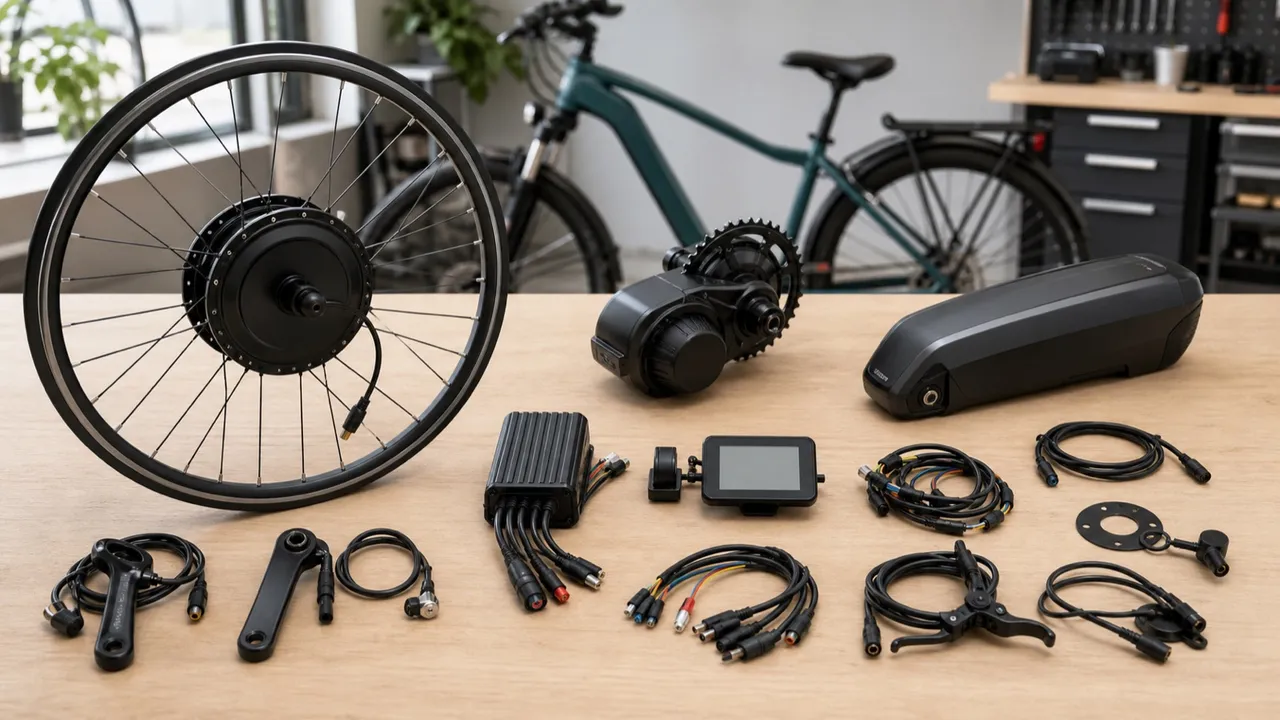

Electric Bike Conversion Kit Guide: Mid-Drive vs Hub Motor

Choose an electric bike conversion kit only after matching the motor architecture, bicycle interfaces, battery and charger, brakes, legal class, and complete electrical system. A mid-drive is the better fit for some hills and geared riding, while a hub motor can simplify the bicycle drivetrain. Neither type is a universal bolt-on upgrade.

Start with the host bicycle

The bicycle has to remain structurally sound, controllable, and serviceable after conversion. Before shopping, inspect or measure:

• frame and fork material, condition, and manufacturer restrictions;
• bottom-bracket shell type and dimensions;
• front and rear dropout type, spacing, axle interface, and material;
• wheel diameter, rim, spokes, tire, and brake system;
• crank, chainring, chainline, cassette, derailleur, and chain;
• space for the battery, controller, display, sensors, and wiring;
• rider, cargo, bicycle, and conversion-system mass;
• intended grade, surface, weather, and storage environment.

Do not install a hub motor in a carbon fork or frame unless the manufacturer explicitly approves the exact motor and retention system. Do not spread dropouts, machine a frame, or improvise battery mounts.

Mid-drive conversion kits

A mid-drive replaces or integrates with the crank area and sends motor power through the bicycle drivetrain. This central placement can preserve normal wheel service and let the motor use the bicycle’s gears.

The tradeoff is integration complexity. Bottom-bracket fit, chainline, chainring size, crank clearance, derailleur capacity, chain wear, shift behavior, and ground clearance all matter. Higher drivetrain loads can accelerate wear or expose weak adjustment.

Our ModWheel mid-drive kit review shows why an active product listing still requires exact fit and electrical-system verification.

Front hub-motor kits

A front hub motor replaces the front wheel or hub. It avoids sending motor power through the chain and rear drivetrain, but moves weight and drive force to the fork.

Confirm:

• fork material and manufacturer approval;
• dropout width, axle flats, and retention hardware;
• brake rotor or rim-brake compatibility;
• tire and fender clearance;
• cable routing through full steering movement;
• suitable anti-rotation hardware where specified.

A motor axle can load a dropout differently from an ordinary hub. Do not assume a torque arm makes an otherwise prohibited fork safe.

Rear hub-motor kits

A rear hub motor places drive force at the rear wheel and can provide good traction without loading the bicycle chain. Installation must still match dropout spacing, axle retention, cassette or freewheel type, brake interface, derailleur clearance, rim, spokes, and tire.

Rear-wheel removal becomes more involved because of the motor cable and retention hardware. Plan for roadside tire service before relying on the converted bike for transportation.

Battery and charger are a system

Match voltage, current, connector, polarity, controller limit, battery-management system, charger, and physical mount. Do not combine components because their connectors happen to fit.

UL Solutions explains that UL 2849 evaluates an e-bike’s electrical drive train, battery, and charger as a system. Certification of one component is not the same as certification of the complete system (UL certification guidance). Verify a certification through the named testing organization’s database rather than relying on a marketplace badge.

Use only the approved charger. Stop using and isolate the system if a battery is damaged, swollen, unusually hot, wet beyond its rating, emitting an odor, or involved in a crash. Follow manufacturer and local fire-department instructions for storage and disposal.

Motor power does not decide legality by itself

State e-bike classifications can depend on assisted speed, throttle capability, pedal operation, motor rating, labeling, and equipment. Trail and sidewalk access can differ from public-road rules. PeopleForBikes provides a state-by-state e-bike law index, but confirm the current rule with the responsible government agency and land manager.

Settings that allow a configuration outside the applicable class can change where it is legal to operate. Do not rely on a seller’s nationwide access statement.

Brake and handling review

Added mass and assisted speed change stopping and handling demands. A qualified mechanic should evaluate:

• brake type, rotor or rim condition, pad compound, and adjustment;
• tire condition, pressure, load rating, and rim compatibility;
• wheel build, spoke tension, axle retention, and bearing adjustment;
• frame, fork, handlebar, stem, and headset;
• cable and hose routing;
• low-speed throttle behavior and motor cutoff;
• rider fit and ability to control the heavier bicycle.

Perform the first tests in a closed, level area at low assistance. Confirm that the motor stops when commanded, brakes operate predictably, cables remain clear, and every fastener stays secure.

Conversion kit or complete e-bike?

A conversion makes sense when you have a high-quality compatible bicycle, exact measurements, an approved electrical combination, access to qualified installation, and a clear service plan.

A factory-built e-bike is usually the better choice when you need a warranty for the complete system, verified certification, predictable fit, dealer service, or dependable daily transportation. Compare the total cost of the motor, battery, charger, controls, installation, brake or wheel upgrades, and future service.

Final checklist

Do not order until you have:

1. written compatibility for the exact bicycle interfaces;
2. an exact motor, controller, battery, and charger combination;
3. verifiable complete-system certification information;
4. a legal class and intended route;
5. a battery mounting and charging plan;
6. brake, wheel, tire, and axle approval;
7. installation instructions and torque values;
8. replacement parts and service support;
9. a qualified post-installation inspection.

The best electric bike conversion kit is the one that can be documented as a complete system on your bicycle. Motor wattage and advertised range come later.
