E-Bike Controllers Explained: Voltage, Current, and Compatibility

Learn what an e-bike controller does and how to match voltage, current, motor sensors, connectors, firmware, and battery limits safely before applying power.

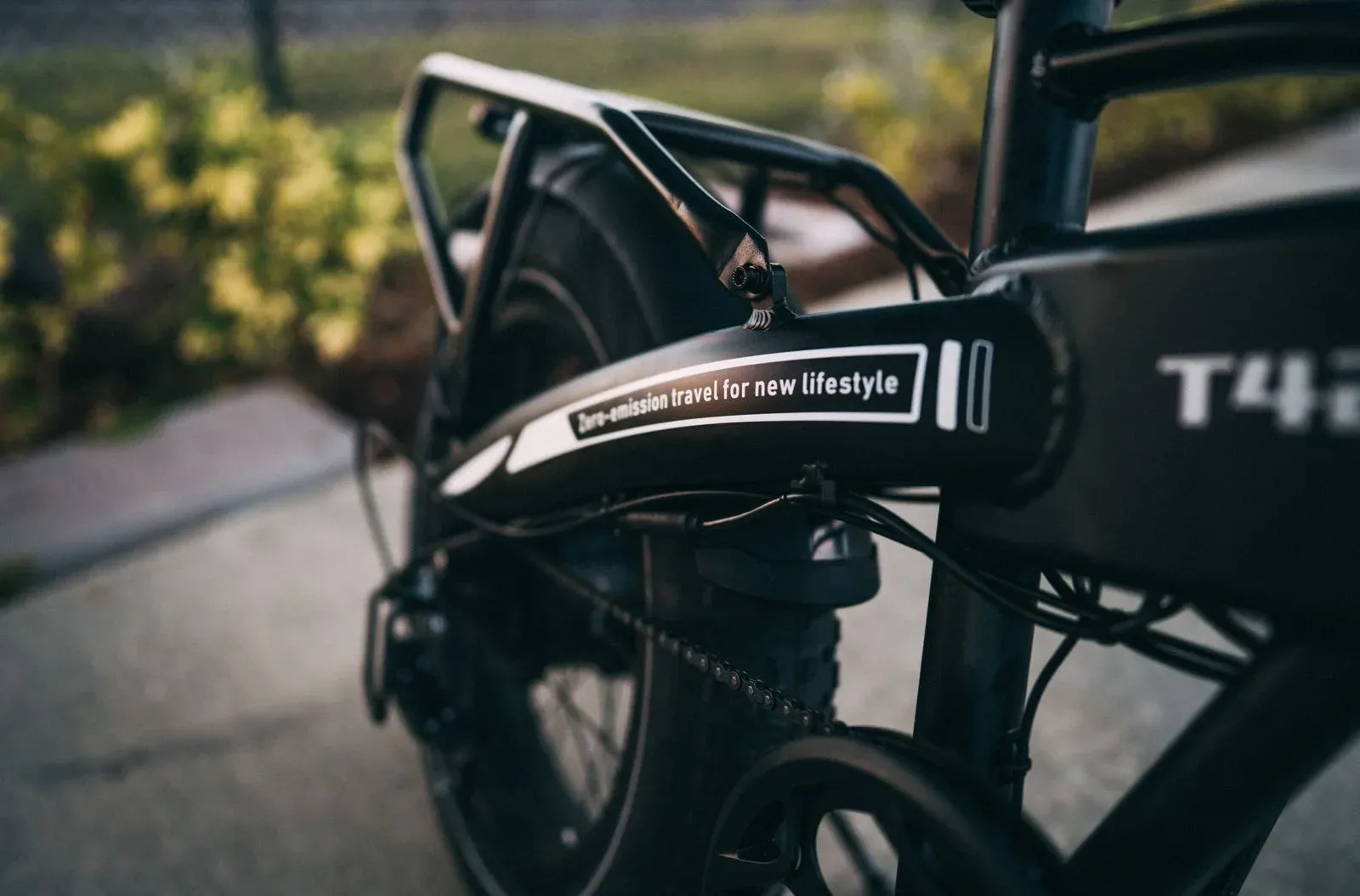

Frame and rear wheel of an electric bicycle
Context photograph: frame and rear wheel of an electric bicycle. Photo source
#e-bike conversion#motor controller#bike compatibility

Table of Contents

An e-bike controller is the electronic link between the battery, motor, sensors, and rider controls. It switches and regulates electrical current to the motor while enforcing limits set by the controller, battery, firmware, and system maker. A compatible controller must match the exact battery voltage range, current capability, motor and sensor interfaces, controls, communication method, connectors, and installation environment. A label such as 48 V or 750 W is only one field in that check.

If you are selecting an entire conversion, start with the electric bike conversion kit guide and keep the controller as part of the approved motor, battery, and bicycle combination. Our wattage and battery-voltage guide explains why a watt label cannot establish compatibility by itself.

Key Takeaways

  • Match the controller to the battery’s nominal and full-charge voltage, not only a marketplace label.
  • Check battery current, motor phase-current behavior, low-voltage cutoff, temperature limits, sensors, connectors, and firmware together.
  • Do not bypass a battery-management system, change a current limit, repin a connector, or apply high-current wiring without maker instructions and qualified technical help.

What does an e-bike controller do?

The controller receives energy from the battery and uses switching electronics to deliver controlled phases of current to a brushless motor. It also interprets commands from a pedal-assist sensor, throttle, display, brake cutoff, temperature sensor, or a digital communication bus, depending on the system. The controller can determine when assistance starts, how much current is requested, and when a protection limit should reduce or stop output.

This does not make every controller a universal replacement. A simple system can use analog signals and discrete connectors, while a proprietary system may require a display, battery, motor sensor, or firmware handshake from the same family. A connector can look identical while the pinout, polarity, signal level, or communication protocol differs.

Grin describes a controller as a component with a defined voltage range and current limit, and explains that the controller regulates power sent to the motor (Summary of Ebike Components, retrieved September 1, 2026). Treat that page as a concept overview. Use the manual for the exact controller before connecting a battery.

Controller voltage: nominal is not the whole range

Battery labels usually state nominal voltage. The battery voltage is higher after charging and lower during discharge, and the controller’s capacitors, switching devices, display, lights, and low-voltage protection each have an operating range. The battery’s charger and BMS also have their own charge and discharge limits.

Record these fields from the controller and battery documents:

Controller voltage: nominal is not the whole range
CheckWhy it matters
Nominal battery voltagePlaces the controller in the intended system family
Allowed voltage rangeShows what the controller can accept while riding
Full-charge voltagePrevents a charged pack from exceeding the controller’s input limit
Low-voltage cutoffDetermines when the controller stops requesting discharge
Battery chemistry and pack configurationAffect voltage behavior, BMS limits, and charger requirements
Display and accessory voltagePrevents a compatible motor path from damaging another output

Do not use a higher-voltage battery to seek more speed unless the exact controller and every connected component are documented for its full-charge voltage. Do not infer the range from another controller with the same nominal label. If the manual is unclear, ask the controller or kit maker, or have a qualified technician identify the limits before applying power.

The official Bafang page for one CR S307.1000.FC controller illustrates why exact model documentation matters: it lists 48 V and 52 V nominal variants, different low-voltage protection values, and configuration-dependent current limits (CR S307.1000.FC controller, retrieved September 1, 2026). Those values belong to that product listing. They do not approve another Bafang controller, battery, motor, or conversion.

Current limits: battery current and phase current are different

Current is the flow of charge at a particular moment. A controller may specify a battery-current limit on the input side and a phase-current limit or behavior on the motor side. The two values can differ because the controller changes voltage and current while switching power to the motor. Product documents may also distinguish continuous limits from short-duration or configuration limits.

For a compatibility record, copy the exact labels and units rather than rewriting them as a single watt number:

  1. battery continuous discharge rating;
  2. battery BMS discharge and charge limits;
  3. controller battery-current limit;
  4. controller phase-current or motor-current limit, if provided;
  5. motor maker’s current, temperature, and operating limits;
  6. wire, fuse, connector, and switch ratings;
  7. firmware settings that can change any of those limits.

Grin’s battery guidance gives a product example in which a controller configured for more current than a pack’s rating can trigger a BMS cutoff or stress the pack (Battery Options, retrieved September 1, 2026). The lesson is to match the lower system limit. It is not permission to copy that example’s amperage into a different build.

The battery size and capacity guide covers why a larger Ah number does not fix a current mismatch. Energy capacity and current capability are separate checks.

Sensors, controls, and communication

Before ordering a controller, identify how the motor and controls communicate. A conversion may use hall sensors, a wheel-speed input, a pedal-assist sensor, a throttle, brake cutoffs, a temperature sensor, a display, or a serial bus. The controller needs the expected electrical signal and connector arrangement for each input.

Check the following in the wiring diagram:

  • motor phase wires and hall or position-sensor wires;
  • pedal-assist sensor voltage, connector, magnet orientation, and signal type;
  • throttle signal range and return behavior, if a throttle is allowed;
  • brake-cutoff switch type and normally open or closed behavior;
  • display, keypad, lighting, and communication-bus family;
  • motor temperature sensor type and the controller’s response;
  • waterproofing, locking tabs, pin numbering, and approved harnesses.

Never rely on color alone. Wiring colors are not a universal standard, and a physically matching plug can have a different pinout. Do not cut, repin, or jumper a high-current or communication connector to test a theory. A qualified technician can trace the wiring against the maker’s diagram and check polarity before the battery is connected.

Low-voltage, temperature, and fault protection

Controllers normally use limits that protect electronics or respond to information from the battery and motor. A low-voltage cutoff can stop assistance when the input falls below the controller’s configured threshold. A thermal input or internal sensor may reduce output or stop the controller when a temperature limit is reached. A brake signal, sensor fault, communication error, or over-current condition may also stop assistance.

A cutoff is a diagnostic signal, not an invitation to defeat protection. Repeated cutoffs can indicate an undersized battery or BMS, voltage sag, a loose connector, a sensor fault, a temperature problem, an incorrect setting, or a damaged component. Record the exact conditions, display code, battery state, and maker’s troubleshooting result. Do not raise the cutoff, increase current, or bypass a brake signal merely to make the symptom disappear.

Grin’s controller-setting notes recommend that a current limit be no more than the lower of the controller limit and the battery’s continuous rating, while also describing the relationship between current and power limits (Cycle Analyst V3 Settings, retrieved September 1, 2026). This is a conservative configuration principle for documented systems, not a substitute for the battery or controller manual.

How do you match a controller to a conversion kit?

Use a written compatibility worksheet. Fill every field from the exact model manuals, and mark unknown fields as unknown rather than guessing.

1. Match the battery voltage range

Confirm nominal voltage, full-charge voltage, low-voltage cutoff, chemistry, and pack configuration. Make sure the battery’s BMS permits the controller’s expected discharge current. The charger must be approved for the same battery, but charger compatibility does not automatically prove controller compatibility.

2. Match the current and power envelope

Compare battery continuous discharge, BMS limits, controller input current, controller motor-current behavior, motor limits, fuse, wiring, and connectors. If one limit is absent, stop and ask the maker. Do not convert a marketing watt rating into an invented continuous rating.

3. Match motor and control interfaces

Confirm phase order and sensors, pedal assist, throttle, brake cutoffs, display, communications, temperature input, and firmware. The battery mounting guide covers the physical cable and pack checks that must happen before these electrical connections are powered.

4. Match the physical and environmental installation

Check enclosure rating, heat dissipation, cable bend, water exposure, vibration, service access, and mounting support. A controller hidden in a sealed bag may not have the cooling or inspection conditions its manual expects. Keep high-current wiring away from sharp edges and moving parts. Have a qualified technician inspect fuse placement, crimps, conductor size, and any adapter.

The bicycle still needs adequate brakes, tires, frame and fork interfaces, axle retention, and a secure battery mount. Local rules may define assisted speed, motor rating, throttle use, labeling, and where a conversion may operate. Document the as-ridden configuration and verify current rules with the responsible agency.

What are common controller problems?

Symptoms can narrow a diagnosis without proving a cause:

What are common controller problems?
SymptomPossible categories to check
No display or no responseBattery switch, fuse, connector, polarity, display communication, low voltage
Display turns off under loadBattery voltage sag, BMS cutoff, loose high-current connection, current limit
Motor shudders or fails to startPhase or hall interface, sensor setting, connector, firmware, motor fault
Assistance stops during a climbTemperature, battery current limit, low-voltage cutoff, overload, fault code
Throttle or assist does not respondInput type, brake cutoff, control setting, communication, sensor position
Controller becomes unusually hotLoad, cooling, configuration, wiring, motor condition, installation environment

The safest first step is to stop riding, remove the battery if the maker instructs it, and inspect only what the manual identifies as user-serviceable. Do not open the controller, battery, or charger unless the maker’s service process explicitly permits it. Any hot connector, melted insulation, smoke, odor, damaged battery, or repeated protection event needs the maker and a qualified technician.

Frequently asked questions

Can any 48 V controller run a 48 V e-bike battery?

No. The full-charge voltage, low-voltage range, current limits, connectors, motor sensors, controls, communication, firmware, and installation requirements must match. A 48 V label is a starting point, not approval.

Is a higher-amp controller better?

No. More current can exceed the battery BMS, battery cells, fuse, connectors, wiring, motor thermal limit, or bicycle’s intended use. Use the lower documented limit and maker-approved settings. More current is not a substitute for the correct motor, gearing, battery, brakes, or cooling.

Can I use a controller from a different brand?

Only when the exact motor, battery, controls, communication method, voltage range, current limits, connectors, firmware, and installation are documented as compatible. Brand matching alone proves nothing, and brand differences alone do not prove incompatibility. Get written confirmation or qualified technical review.

Can I bypass the BMS if the controller keeps cutting out?

No. A BMS cutoff can identify over-current, low cell voltage, temperature, imbalance, a damaged pack, or another protection condition. Find and correct the cause with the battery maker or a qualified technician. Never bypass a battery protection circuit.

Does a controller with a higher watt rating make the bike faster?

Not necessarily. Speed depends on voltage, motor characteristics, wheel size, load, aerodynamic drag, controller limits, firmware, terrain, and legal restrictions. A higher rating can instead increase heat, current demand, or incompatibility risk.

Can I test a controller with a random battery or charger?

No. Use only the battery and charger approved for the system, and follow the maker’s connection and test sequence. The battery BMS guide explains why a protective cutoff should not be defeated. The charger compatibility guide covers the separate charging check.

What should I do when a controller gets hot?

Stop the test and follow the motor and controller manuals. Record load, terrain, assist setting, ambient conditions, and any fault code without continuing to stress the system. Do not add current or seal the controller in a warmer enclosure. Ask the maker or a qualified technician to inspect configuration, cooling, wiring, and motor condition.

How we researched this guide

This is research-based controller-selection guidance, not a motor test, electrical test, thermal test, or hands-on installation. We reviewed Grin’s component and controller-setting explanations, one current Bafang controller specification as an example of model-specific limits, and UL Solutions’ description of e-bike system evaluation. We did not measure a controller, approve a wiring change, or generalize one product’s settings to another system.

Bottom line

Choose the controller only after the exact battery voltage, full-charge range, current limits, BMS, motor sensors, controls, connectors, firmware, cooling, bicycle, and legal configuration are documented. If any high-current connection or limit is uncertain, leave the battery disconnected and use the maker or a qualified technician to resolve it.
