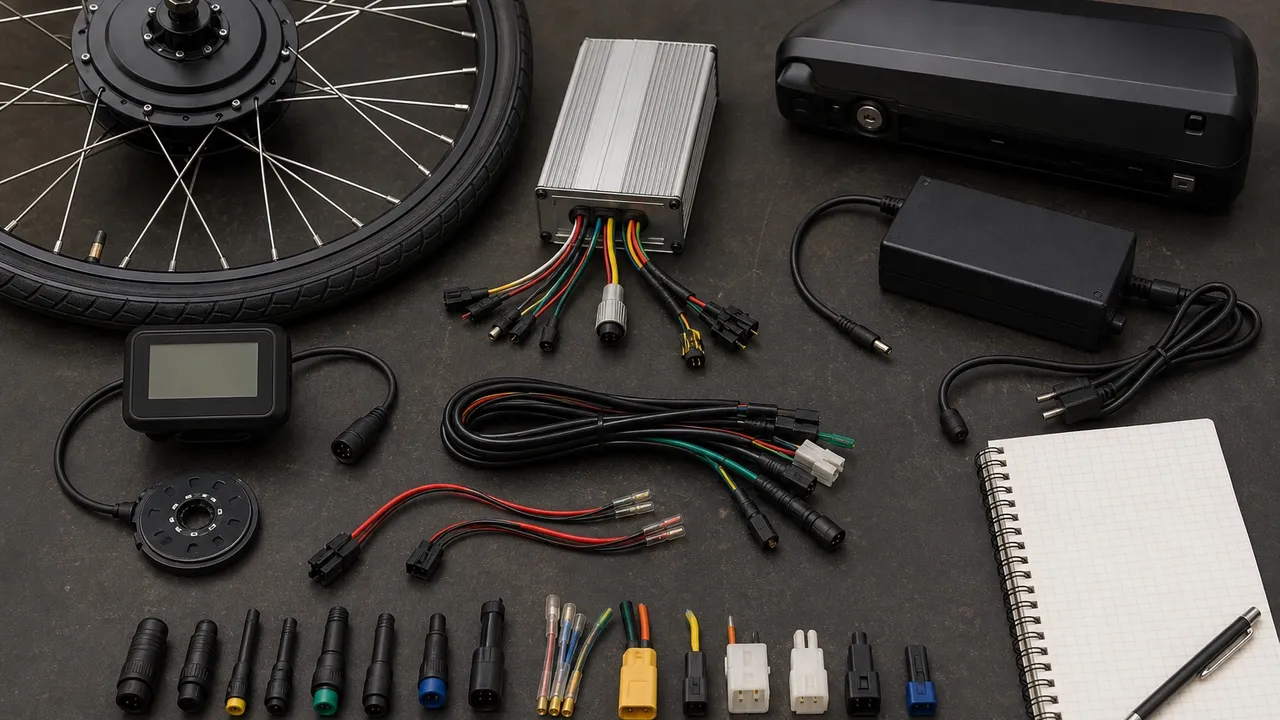

Do not choose an e-bike conversion kit by a motor’s watt label or battery voltage alone. The safe choice is a documented motor, controller, battery, battery-management system, charger, wiring, connector, control, and firmware combination that fits the bicycle and remains legal in its intended location.
What the numbers can and cannot tell you
| Label | Useful meaning | What it does not prove |
|---|---|---|
| Volts (V) | Nominal electrical potential of a battery or system | That two parts share the same full-charge range, connector, polarity, or protocol |
| Amps (A) | Current at a stated operating point or limit | The actual current in every condition or the motor’s safe thermal load |
| Watts (W) | Electrical power is voltage multiplied by current at that moment | Wheel output, legal class, hill ability, range, or continuous thermal capacity |
| Amp-hours (Ah) | Battery charge capacity under specified conditions | Range without voltage, load, speed, terrain, temperature, and system efficiency |
| Watt-hours (Wh) | Nominal energy is approximately volts multiplied by amp-hours | Guaranteed usable energy, range, service life, or compatibility |
These relationships help check documentation. They are not permission to assemble parts from labels. A 48 V controller may have an operating range that another “48 V” battery exceeds at full charge, and a connector that fits can still have reversed polarity or an incompatible communication protocol.
Start with an approved system combination
Use a kit maker’s configuration table or written confirmation for the exact variants. Record:
- motor model, winding, wheel size, connector, temperature sensor, and rated operating envelope;
- controller model, supported battery-voltage range, battery-current limit, motor phase-current behavior, low-voltage cutoff, firmware, and control inputs;
- battery model, chemistry, series configuration, nominal and full-charge voltage, continuous and peak discharge limits, BMS, fuse, connector, and enclosure rating;
- charger model, output voltage and current, charge protocol, connector, polarity, and approvals;
- display, throttle, pedal-assist sensor, brake cutoff, wiring harness, lights, and accessories.
Grin describes its current kits as systems built around a motor with a matching controller, display, wiring, and sensors rather than a bare wheel selected by wattage (current kit overview). That integration principle matters even when buying elsewhere.
Why voltage must match more than a name
Battery voltage changes as the pack charges and discharges. Controller electronics, capacitors, low-voltage cutoffs, displays, lights, and other accessories each have limits. The battery BMS also limits charge and discharge and may communicate with the rest of a proprietary system.
Do not substitute a higher-voltage battery to chase speed. Do not repin connectors, bypass a BMS, defeat a fuse, or change controller programming without the system maker’s approved procedure. A qualified technician should resolve ambiguous connector, polarity, insulation, fuse, and wiring specifications before power is applied.
Wattage is not a hill-climbing guarantee
The electrical input at one moment is not the same as mechanical power at the tire. Controller limits, motor efficiency, wheel diameter, speed, grade, total mass, wind, tire losses, and temperature all affect performance. A motor can produce heat rapidly when operated below an efficient speed under heavy load.
Compare current motor curves or a maker-supplied simulator for the exact winding, wheel, controller, battery, mass, speed, and grade. Stop or reduce load at the maker’s temperature limit. Never raise current limits to compensate for an undersized motor, weak battery, unsuitable hill, or incompatible bicycle.

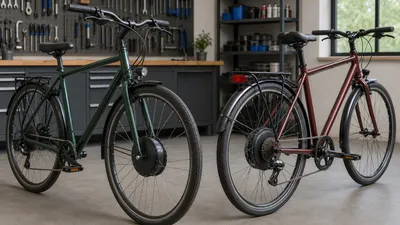

Motor construction also changes the decision. Our geared-versus-direct-drive hub guide covers mass, drag, service, and regenerative potential; the front-versus-rear guide covers axle and bicycle interfaces.
Battery and charger safety is non-negotiable
UL Solutions says UL 2849 evaluates an e-bike’s electrical drive train, battery, and charger system combinations (UL 2849 overview). A battery, charger, or motor carrying a certification mark does not by itself certify the assembled conversion.
The CPSC warns that chargers marketed as universal can be incompatible even when they physically connect. Use only a charger tested and approved for the exact battery (CPSC charger warning).
Follow the maker’s charging location, supervision, temperature, storage, and unplugging rules. Never charge while asleep or where an exit can be blocked. Stop using and isolate the system according to manufacturer and fire-authority guidance if a pack is damaged, swollen, unusually hot, wet beyond its rating, leaking, smoking, hissing, or emitting an unusual odor.
Mechanical fit and brakes still matter
An electrically matched kit can still be wrong for a bicycle. Confirm frame and fork approval, axle and dropout interfaces, wheel and tire fit, brake capacity, drivetrain or bottom-bracket fit, battery mounting, wiring clearance, total mass, and handling. Use our donor-bike compatibility checklist before ordering.
Wattage and legal class are different questions
Rules can depend on motor rating, assisted speed, throttle operation, pedal operation, labeling, equipment, rider age, and location. Trail and path access can differ from road rules. PeopleForBikes maintains a useful state e-bike law index, but verify the current configuration with the responsible government agency and land manager.
Do not assume a programmable limit converts otherwise incompatible hardware into a legal, certified class. Document the exact as-ridden configuration.
How we researched this guide
This is research-based electrical-selection guidance, not an electrical, battery, range, or dynamometer test. We reviewed current integrated-kit documentation, UL system-certification scope, CPSC charger guidance, and the electrical and mechanical interfaces that need written confirmation. We do not endorse a voltage swap, current-limit change, or improvised battery assembly.
Bottom line
Treat volts, amps, watts, amp-hours, and watt-hours as fields in a compatibility record—not as a shopping shortcut. Buy only when the maker approves the exact motor, controller, battery, BMS, charger, connectors, controls, bicycle, and legal configuration as one system.
