Front vs. Rear Hub Motor E-Bike Conversions
Choose a front or rear e-bike hub motor by fork and dropout approval, traction, steering, drivetrain fit, brakes, wheel service, and axle retention.
A rear hub motor is the better default for many conversions because the rear wheel carries more rider load and rear dropouts are commonly more substantial. A front hub motor can preserve the rear drivetrain and simplify some wheel configurations, but it adds drive torque, motor mass, and cable routing to the steering assembly. The bicycle and motor manufacturers must approve the exact installation either way.

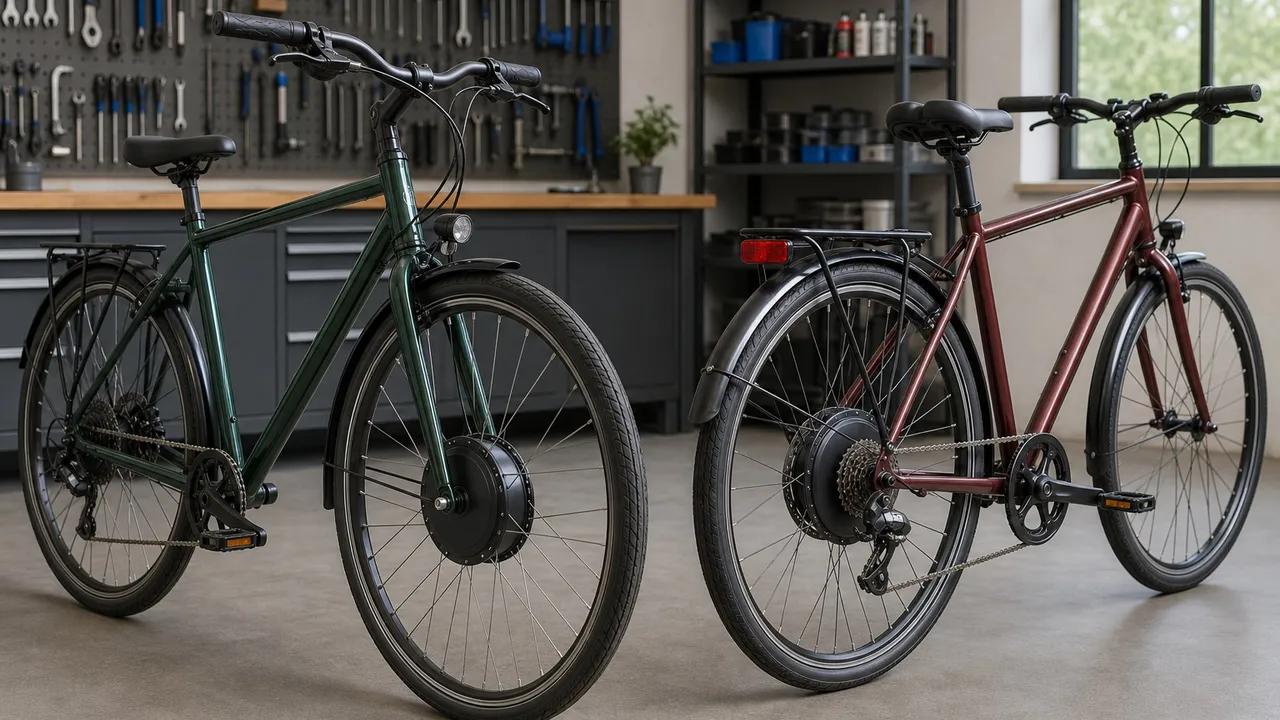

Front and rear hub motors at a glance
| Decision | Front hub | Rear hub |
|---|---|---|
| Bicycle drivetrain | Leaves chain, cassette, and derailleur unchanged | Must match cassette or freewheel, derailleur, chainline, and dropout spacing |
| Traction | Front tire can unload or slip on loose or steep surfaces | Rider weight generally helps rear-wheel traction |
| Steering | Adds rotating mass, cable, and drive reaction at the fork | Keeps steering assembly conventional |
| Wheel service | Front removal may be mechanically simpler, but motor wiring and retention remain | Rear removal also involves drivetrain components |
| Critical structure | Fork blades, dropouts or thru-axle interface, brake, headset, and steering clearance | Frame dropouts, brake, drivetrain interface, tire and frame clearance |
| Best use | Only a specifically approved fork and motor combination | Only a specifically approved frame, motor, and drivetrain combination |

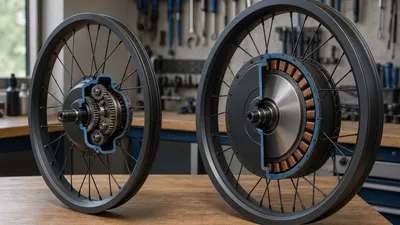

Wheel position does not establish power, range, speed, or legality. Compare motor construction separately in our geared-versus-direct-drive hub guide.
When a front hub can make sense
A front motor does not consume rear cassette or freewheel space. It can leave the bicycle’s rear gearing and chain service unchanged, and a front wheel is usually easier to remove than a rear wheel on an ordinary bicycle.
The structural burden moves to the fork. A motor axle applies reaction torque at the dropouts, while motor mass and drive force affect steering and front-tire grip. Cable routing must remain clear through full steering movement. Brake rotor or rim-brake alignment, fender clearance, tire clearance, wheel diameter, and axle seating all have to be documented.
Do not place a generic solid-axle hub motor in a carbon fork, suspension fork, thru-axle fork, or delicate dropout because the nominal width looks close. Use only an exact motor, adapter, and retention system that both makers approve. Grin’s Brompton installation instructions, for example, specify axle orientation and a dedicated torque-arm interface for its exact front kit rather than treating the wheel as universal (Brompton kit instructions).
Why rear hubs are a common default
A rear motor puts drive where normal bicycle propulsion already reaches the ground and usually benefits from greater loaded traction. It also keeps motor mass and wiring away from steering.
Installation is not automatically easier. Confirm:
- quick-release, solid-axle, or thru-axle standard and exact spacing;
- approved axle adapters and anti-rotation hardware;
- cassette versus threaded-freewheel interface and supported sprocket count;
- chainline, derailleur, brake, rotor, and caliper clearance;
- rim diameter, internal width, spoke system, tire, and frame clearance;
- motor-cable exit and safe routing;
- wheel-removal and roadside-service procedure.
Grin’s current All-Axle line publishes different front and rear drawings and multiple adapter sets. That breadth illustrates why the word “rear” is not a complete fit specification (All-Axle documentation).
Axle retention is a safety system
Hub-motor reaction torque can try to rotate an axle in the dropout. Grin’s current torque-arm guidance explains that damage can sever wiring or release a wheel when a motor and dropout interface is inadequate (torque-arm guidance). Use the motor maker’s exact washers, nuts or thru-axle adapters, torque arm, fastener torque, retention method, and inspection interval.
A generic torque arm does not make an unapproved fork or frame safe. Stop if the dropout is cracked, bent, spread, gouged, too shallow, wrongly oriented, or incompatible with the motor’s axle and retention parts.
Check whether the exact front or rear hub installation needs a documented torque arm and compatible anchor.Braking, handling, and total mass
Added electrical-system mass and assisted speed can increase stopping demand. The qualified final inspection should cover brakes, tire and rim limits, spoke tension, wheel seating, steering, headset, frame and fork condition, cable routing, motor cutoff, and low-speed control behavior.
Test only in a closed, level area at the lowest assistance after the documented installation and inspection. Stop for axle movement, brake interference, steering resistance, cable tension, wheel rub, unusual heat, error codes, or unpredictable power delivery.
Match the complete electrical system
Front-versus-rear choice does not authorize mixing a motor, controller, battery, and charger. Match the exact voltage range, current limits, connectors, polarity, battery-management requirements, controls, firmware, and approved charger. Our wattage and voltage guide provides the electrical checklist.
UL Solutions explains that UL 2849 evaluates the electrical drive train, battery, and charger combination as a system (UL 2849 overview). A listing for one certified component does not establish certification of a home-assembled conversion.
Check the donor bicycle first
Some bicycles should not be converted at all. Damage, maker prohibitions, inadequate brakes, incompatible axle interfaces, insufficient battery-mount space, and unsafe finished handling are stop conditions. Work through our complete donor-bike checklist before choosing a wheel position.
How we researched this guide
This is a research-based fit comparison, not an installation or ride test. We reviewed current front and rear motor documentation, installation instructions, axle-retention guidance, electrical-system certification information, and the physical interfaces a mechanic must inspect. We do not treat merchant speed or range claims as evidence that a wheel fits a bicycle.
Bottom line
Choose rear drive when its exact axle, drivetrain, brake, and frame interfaces are supported and rear traction is appropriate. Choose front drive only when the fork maker and motor maker document the exact installation and its steering, retention, brake, and traction effects are acceptable. If the compatibility chain is incomplete, do not convert that bicycle.
