Can You Put an Electric Bike Conversion Kit on Any Bike?
No bicycle is automatically conversion-ready. Check frame and fork approval, axle fit, brakes, wheels, drivetrain, battery mounting, wiring, handling, and law.
Table of Contents
- Quick compatibility screen
- 1. Start with frame and fork approval
- 2. Match the motor interface
- 3. Evaluate brakes, wheels, tires, and steering
- 4. Plan a real battery mount
- 5. Match the complete electrical system
- 6. Confirm the law and intended route
- Installation and first-test stop conditions
- When a complete e-bike is the better choice
- How we researched this checklist
- Bottom line
No, you cannot safely put an electric bike conversion kit on any bike. The bicycle maker must allow the intended conversion, every motor interface must fit without prohibited modification, the battery and controller need secure mounting, and the brakes, wheels, tires, steering, drivetrain, and electrical system must remain suitable for the finished mass and assisted operation.
Quick compatibility screen
| Check | Proceed only when | Stop when |
|---|---|---|
| Frame and fork | Maker approves the conversion; structure is undamaged | Carbon or other material is unapproved, cracked, bent, corroded, drilled, crushed, or previously repaired without approval |
| Hub-motor axle | Exact dropout or thru-axle, spacing, brake, wheel, and retention system match | Installation needs spreading, grinding, improvised washers, or an unapproved torque arm |
| Mid-drive mount | Bottom-bracket shell, crank, chainline, clearance, controls, and drivetrain are documented | Motor or crank contacts the frame, cables, kickstand, suspension, or ground |
| Battery | Approved pack and mount fit inside documented load and clearance limits | Pack can move, strike a wheel, block steering, crush wiring, or rely on straps not approved for the load |
| Brakes and tires | Makers approve the finished use and qualified inspection passes | Weak, damaged, incompatible, or undocumented components remain |
| Electrical system | Exact motor, controller, battery, BMS, charger, harness, and controls are approved together | Parts merely share a voltage label or connector shape |
Passing this screen does not prove compatibility; it tells you whether detailed evaluation is worthwhile.
1. Start with frame and fork approval
Find the exact bicycle model, year, size, frame and fork material, rider and cargo limits, and maker’s conversion policy. Inspect the head tube, steerer, fork crown and blades, dropouts, welds, bottom bracket, battery-mount area, rear triangle, and previous repair points.
Do not drill, grind, spread, crush, clamp, or weld a frame or fork to make a kit fit unless the bicycle maker publishes an approved procedure for that exact part. Do not assume steel construction, large tubes, or a “heavy-duty” label makes a bicycle motor-ready.
2. Match the motor interface
For a hub motor, document wheel position, axle or thru-axle standard, dropout spacing and shape, adapter set, anti-rotation system, brake interface, cassette or freewheel, rim, spokes, tire, cable exit, and wheel-removal procedure. Grin’s current All-Axle motor uses different front and rear drawings and adapter sets, demonstrating that even a broadly compatible motor still needs exact fit documentation (All-Axle motor documentation).
Read our front-versus-rear hub guide before selecting a wheel and our geared-versus-direct-drive guide before selecting motor architecture.
For a mid-drive, record bottom-bracket shell type, width and diameter, spindle and crank requirements, chainring size, chainline, rear gearing, derailleur capacity, ground clearance, torque hardware, cable routing, and service access. Rotate the crank through a complete cycle and move suspension through its intended travel during an unpowered clearance check.
3. Evaluate brakes, wheels, tires, and steering
Added mass and assisted operation can increase stopping and handling demands. A qualified bicycle mechanic should inspect:
- brake type, lever compatibility, pad and rotor or rim condition;
- tire size, construction, pressure and load limits, plus rim compatibility;
- wheel build, spoke tension, bearings, axle seating, and retention;
- fork, headset, stem, handlebar, controls, and cable routing;
- rider fit and ability to control the heavier bicycle.
A motor cutoff can be useful, but it does not compensate for inadequate mechanical brakes. Regenerative braking, where supported, is supplemental and cannot replace mechanical brakes.
4. Plan a real battery mount
The battery needs a maker-approved mount on a structure rated for the load. It must remain secure under braking, bumps, steering, and handling, while staying clear of wheels, cranks, suspension, cables, heat, water beyond its rating, and impact zones.
Do not hang a heavy pack from bottle bosses unless the battery and bicycle makers approve that mount. Do not place it where removal blocks an exit route during charging. Account for the pack, motor, controller, hardware, luggage, rider, and cargo in the bicycle’s finished mass.
5. Match the complete electrical system

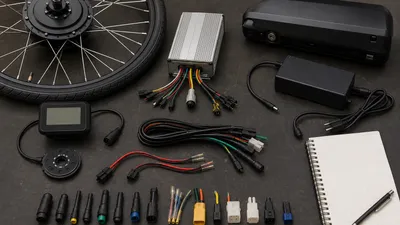

The motor, controller, battery, BMS, charger, connectors, polarity, fuse, harness, display, throttle or pedal sensor, brake cutoff, firmware, and accessories must be an approved combination. Our wattage and battery-voltage guide explains why a matching voltage label is not enough.
UL Solutions says UL 2849 evaluates the drive train, battery, and charger combination as a system (UL 2849 overview). The CPSC warns against unapproved “universal” chargers because a plug can fit while electrical requirements do not (CPSC charger warning).
6. Confirm the law and intended route
Legal classification can depend on motor rating, assisted speed, throttle operation, pedal operation, labeling, equipment, rider age, and location. Public roads, paths, sidewalks, and trails may have different rules. Start with the PeopleForBikes state-law index, then confirm the current rule with the responsible government agency and land manager.
An adjustable controller does not prove the finished bicycle is legal in every mode or location.
Installation and first-test stop conditions
Use the exact maker instructions, fastener torques, retention parts, wiring diagram, programming, and inspection interval. Have a qualified mechanic inspect safety-critical work before power is applied.
For a hub conversion, verify the motor maker’s exact torque-arm and axle-retention requirements before treating the dropout as compatible.Conduct the first powered check in a closed, level area at the lowest assistance. Stop immediately for:
- wheel or axle movement;
- steering resistance or cable tension;
- brake rub, weak braking, or missing motor cutoff;
- unexpected throttle or pedal-assist response;
- loose battery or controller mounts;
- drivetrain interference, abnormal noise, heat, odor, smoke, or error codes;
- cracks, paint movement around joints, or loosening fasteners.
When a complete e-bike is the better choice
Choose a factory-built e-bike when the donor bicycle lacks written approval, fit documentation is incomplete, the conversion needs structural modification, the electrical combination is not documented, or dependable transport requires a complete-system warranty and local service. A conversion is not a bargain when it creates unresolved frame, brake, battery, or certification risk.
How we researched this checklist
This is a research-based compatibility guide, not an installation or ride test. We reviewed current conversion-motor documentation, axle-retention guidance, integrated electrical-system certification scope, federal charging safety guidance, and the mechanical interfaces that determine whether a donor bike remains serviceable.
Bottom line
A bicycle is conversion-ready only after the exact frame, fork, motor mount, wheels, brakes, drivetrain, battery mount, wiring, electrical system, controls, finished mass, and legal configuration are documented together. If any safety-critical interface depends on improvisation or assumption, do not convert that bike.
