Geared vs. Direct-Drive Hub Motors for E-Bike Conversions
Compare geared and direct-drive e-bike hub motors by mass, drag, noise, regenerative-braking potential, heat, service needs, and bicycle fit.
A geared hub motor is usually the better starting point when low mass, compact size, and easy unassisted pedaling matter. A direct-drive hub motor is usually the better fit when smooth quiet operation, fewer internal wear parts, and a documented regenerative-braking system matter. Neither architecture is automatically stronger, safer, or compatible with your bicycle.

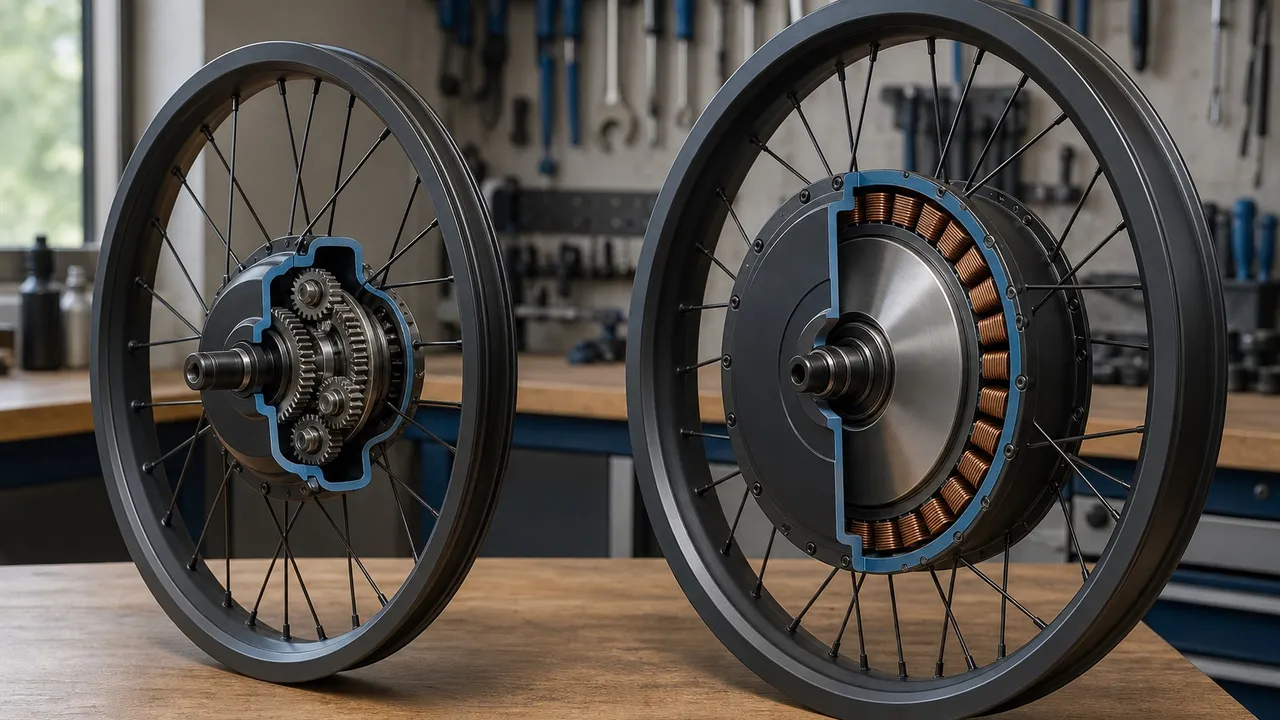

Geared and direct-drive hub motors at a glance
| Decision | Geared hub motor | Direct-drive hub motor |
|---|---|---|
| Internal drive | Planetary gears reduce a faster motor to wheel speed | Motor shell drives the wheel without reduction gears |
| Typical package | More compact and lighter for comparable use | Traditionally larger and heavier, though designs vary |
| Pedaling without assist | An internal clutch commonly lets the wheel freewheel | Some magnetic drag remains unless the system actively offsets it |
| Sound | Gear mesh can be audible | Usually very quiet |
| Service questions | Gears and clutch add wear parts | Fewer internal moving parts |
| Regenerative braking | Usually unavailable with a freewheeling clutch | Possible only when motor, controller, battery, controls, and programming support it |
| Best first question | Does the exact motor meet the bicycle’s fit and thermal needs? | Does the exact motor meet the bicycle’s fit, mass, drag, and controller needs? |
These are architecture-level tendencies, not promises about a specific kit. Motor winding, wheel diameter, controller current, battery voltage, total mass, grade, speed, cooling, and programming can change the result.
Why geared hubs can be smaller
A geared hub spins its internal motor faster than the wheel and uses planetary reduction gears to multiply torque at the shell. Grin Technologies’ current eZee documentation describes a 5:1 planetary reduction and lists its geared hub at 3.8 kg. That is one documented product, not a universal weight for geared motors (eZee kit specifications).
The reduction lets a compact motor work in a useful speed range, and an internal clutch commonly disconnects it while coasting. Those advantages come with gears and a clutch that must be supported as service parts. Ask whether the maker publishes replacement procedures and parts for the exact model.
Why riders choose direct drive
In a direct-drive hub, the wheel turns with the motor shell. There is no planetary reduction stage. Grin’s current All-Axle documentation highlights smooth, quiet operation, few internal wear parts, and regenerative-braking capability, while also documenting exact front and rear adapters, brake clearance, torque-arm interfaces, and mass (All-Axle motor documentation).
Regeneration is not a property you can infer from the motor label alone. The controller must support it, the battery must be allowed to accept charge at that moment, the controls must command it safely, and the finished system must be configured and tested as instructed. It supplements mechanical brakes; it never replaces them.
Do not compare motors by watts alone
A watt label does not establish climbing ability, heat margin, legal class, or battery compatibility. A motor can overheat when operated slowly under high load even when a seller’s headline wattage looks conservative. Another system may limit battery current or motor phase current below what a bare motor could tolerate.
Compare the exact system instead:
- motor model and winding;
- intended wheel diameter and operating speed;
- controller voltage and current limits;
- approved battery, battery-management system, and charger;
- motor temperature sensing and controller rollback behavior;
- rider, cargo, bicycle, and conversion mass;
- sustained grade, surface, weather, and stop-and-go use.
Our wattage and battery-voltage guide explains why the complete electrical combination matters more than one headline number.
Fit can decide before motor type does
The hub must match the wheel position, dropout or thru-axle standard, spacing, brake interface, cassette or freewheel, rim, tire, cable exit, and approved anti-rotation system. Grin’s current motor line needs model-specific adapter sets even though it was designed for unusually broad axle compatibility. A generic solid-axle motor is not automatically suitable for a modern thru-axle frame.
Do not spread, grind, drill, or crush a frame or fork to make a motor fit. Do not install a hub motor in carbon parts unless the bicycle and motor manufacturers explicitly approve the exact configuration. Grin explains that axle reaction torque can damage dropouts and that the appropriate torque-arm solution depends on motor and frame geometry (torque-arm guidance). A torque arm does not override a frame maker’s prohibition.
Use the torque-arm decision guide to verify the exact motor axle, dropout, arm, anchor, hardware, and maker instructions.Use our front-versus-rear hub guide to choose a wheel position, then the donor-bike compatibility checklist before ordering.
Battery and charger safety still controls the build
Motor architecture does not make mixed electrical parts safe. UL Solutions says UL 2849 evaluates the drive train, battery, and charger as a system, and a certified component is not the same as a certified complete e-bike (UL 2849 overview). The CPSC warns that a charger marketed as universal can physically connect and still be electrically incompatible (CPSC charger warning).
Use only the battery and charger combination approved for the controller and complete system. Stop using a battery that is damaged, swollen, unusually hot, wet beyond its rating, leaking, smoking, or giving off an unusual odor. Follow manufacturer and local fire-authority directions for isolation and disposal.
How we researched this comparison
This is a research-based architecture comparison, not a ride, bench, thermal, or durability test. We reviewed current motor-maker product documentation, installation constraints, torque-arm guidance, UL system-certification information, and CPSC charging guidance. We did not transfer speed, range, or hill claims from one motor to a whole architecture.
Bottom line
Choose a geared hub when a documented compact, freewheeling package best fits the bicycle and duty cycle. Choose direct drive when its documented fit, mass, drag, thermal behavior, and complete regenerative system suit the job. If either choice lacks an approved mechanical and electrical compatibility chain, choose a different kit or a factory-built e-bike.
