How to Install BMX Pegs Safely

Install a BMX peg only after confirming that the frame or fork, dropout, axle, hub, peg bore, axle nut, and intended riding use are compatible. The peg normally slides over a solid axle and is retained by the axle nut inside the peg, tightened with the correct deep socket and extension.

Stop if the axle does not leave enough thread engagement, the dropout or axle is damaged, the wheel cannot be aligned, or the bicycle manufacturer prohibits pegs. A qualified BMX mechanic should inspect any uncertain setup before it is ridden.

What to check before installing BMX pegs

Axle diameter

Common BMX axle sizes include 3/8 inch and 14 mm, but the label on the peg and hub is the authority. Some pegs use a larger bore with a manufacturer-supplied adapter for the smaller axle.

Do not improvise an adapter or drill a peg. A loose bore can move on the axle, and a forced bore can damage threads or prevent the wheel from seating.

Axle length and nut engagement

The peg takes space that was previously available to the axle nut. The axle must extend far enough through the dropout and peg for the approved nut to engage correctly.

There is no safe universal thread-count rule. Follow the hub, axle, and peg manufacturer’s instructions. Replace the axle or choose a compatible peg if the available thread is inadequate.

Dropout, frame, and fork approval

Pegs apply leverage and impact loads at the dropout. A bicycle that resembles a BMX bike may not be designed for grinding, standing on pegs, or carrying a passenger.

Never install pegs on a quick-release or thru-axle system unless the bicycle and peg manufacturers provide an exact approved solution. Do not clamp a peg under a small quick-release skewer.

Our guide to what bike pegs are used for explains the difference between freestyle, flatland, and passenger claims.

Tools and parts

Gather:

• compatible pegs and any supplied axle adapters;
• the correct deep socket for the axle nut;
• a socket extension long enough to reach through the peg;
• a ratchet or approved torque wrench;
• the bicycle or hub manufacturer’s axle-nut specification;
• clean rags and a stable work support.

Use the specified axle nuts and washers. Do not substitute hardware-store nuts, stack random washers, or lubricate threads unless the applicable instructions call for it.

How to install a BMX peg

1. Stabilize the bike and inspect the wheel

Support the bicycle so it cannot fall. Check the axle, nuts, washers, dropout, hub bearings, spokes, and rim. Stop for bent axles, cracked dropouts, damaged threads, missing hardware, loose spokes, or hub play.

2. Photograph the existing washer arrangement

Record the order and orientation of axle hardware before removal. Some hubs use specific tabbed washers or chain-tensioning hardware. The manufacturer’s diagram takes priority over your photo.

3. Remove one axle nut

Use the correctly fitting socket. On a rear wheel, keep the wheel seated in the dropouts and prevent the chain from pulling it out of alignment.

Work on one side at a time when the hub instructions allow it. Removing both nuts can make alignment and hardware placement harder to preserve.

4. Fit the adapter when required

Insert only the adapter supplied or approved for that peg and axle combination. It should seat fully without forcing.

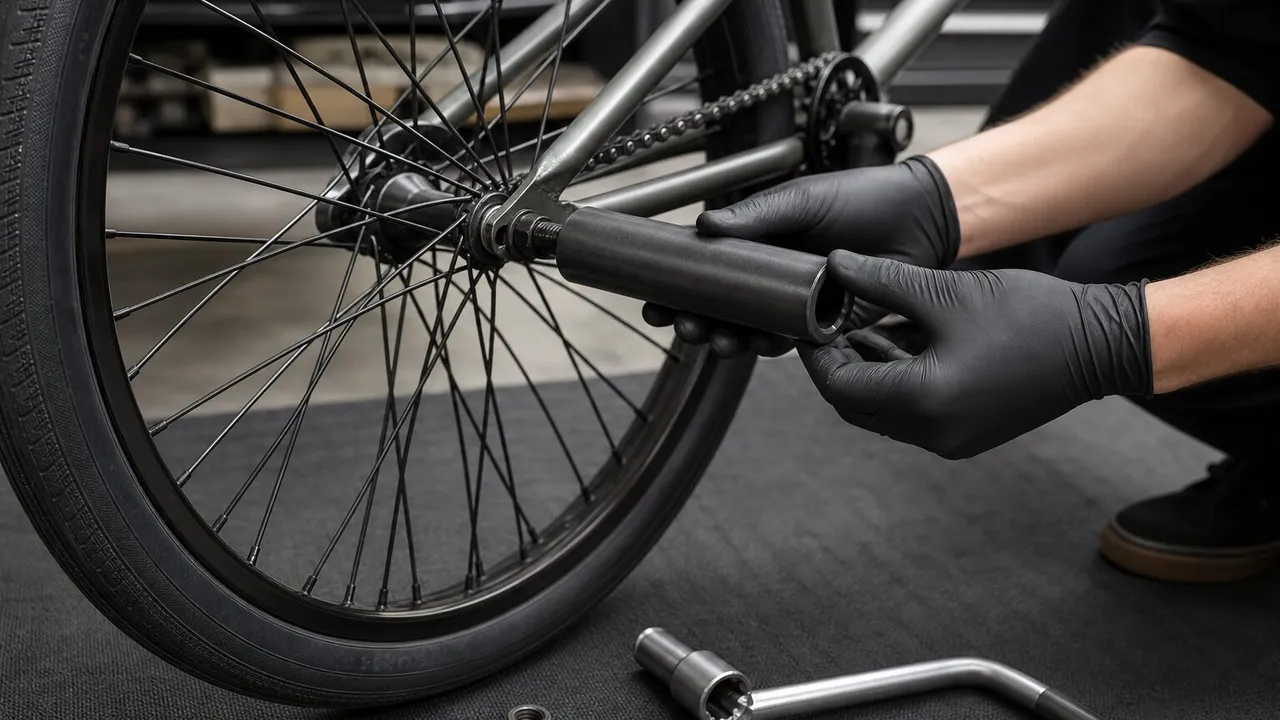

5. Slide the peg onto the axle

Seat the peg squarely against the approved washer or dropout arrangement. If the peg has anti-rotation positions or a replaceable sleeve, orient it according to its instructions.

6. Reinstall the axle nut inside the peg

Start the nut by hand with the deep socket and extension. It should turn smoothly. Stop immediately if it cross-threads, binds, or leaves visibly inadequate engagement.

7. Align the wheel and chain

Center the wheel between the frame or fork. On a rear BMX wheel, set the chain tension according to the bicycle or hub instructions and keep the axle fully seated in both dropouts.

A chain that is too tight can bind and overload bearings. A chain that is too loose can derail.

8. Tighten to the exact specification

Use the torque value and sequence supplied for the exact hub, axle, frame, and peg setup. Do not copy a value from another model. Tighten both sides as required while preserving wheel alignment.

Dan’s Comp maintains a BMX peg installation reference, but the component-specific instructions remain the authority for hardware and torque.

9. Perform a stationary safety check

Spin the wheel and verify that it runs freely, remains centered, and does not rub the frame or brake. Apply each brake, push laterally on the rim, and confirm that the axle and peg do not move.

Recheck chain tension and wheel alignment. Ride only after every safety-critical part passes inspection.

Which side should BMX pegs go on?

Street riders often place pegs on the side they prefer to grind, while flatland and other disciplines may use a different arrangement. The correct side also depends on hub guards, drivetrain clearance, brake hardware, and dropout design.

A rear peg must not contact the chain, sprocket, driver, derailleur, rotor, or brake. A front peg must not interfere with the fork, brake, or steering.

Can you put pegs on any bike?

No. A solid axle is not by itself proof that the frame, fork, hub, and dropout are approved for peg loads. Many kids’ bikes and BMX-style sidewalk bikes are not intended for freestyle use even when pegs are included for appearance.

Check the bicycle’s intended-use statement and weight limits. Never let a passenger stand on pegs unless the bicycle and peg system are explicitly designed and approved for passenger use.

Recheck after installation

Inspect the setup after the first short, low-risk ride and after impacts. Stop riding for:

• a loose peg or axle nut;
• wheel movement in the dropouts;
• chain-tension changes;
• cracked, bent, or spread dropouts;
• damaged axle threads;
• new hub play, spoke looseness, or brake rub.

Pegs wear during grinds. Replace a sleeve or the entire peg at the manufacturer’s limit, before wear reaches the axle or retention hardware.

Bottom line

Compatibility is the installation. Once the frame, fork, hub, axle, dropout, and peg are approved to work together, the mechanical steps are simple: remove one axle nut, fit the correct adapter, slide on the peg, reinstall the nut, align the wheel and chain, and tighten to the exact specification. Do not ride an uncertain or damaged setup.

Before installation, confirm whether pegs can be fitted to the exact bike; quick-release, thru-axle, and unsupported frame or fork combinations need a different answer from a BMX solid axle.
