How to Tell If Bike Brake Pads Are Worn

Bike brake pads are worn when they reach the wear limit specified for the exact brake or pad. You may also see a maker-defined wear groove disappear, friction material approach its backing or holder, or one pad wear much more than its mate. Noise, weak braking, extra lever travel, discoloration, or a shiny surface are warnings, but none proves pad wear by itself.

This is a research-based visual inspection guide, not a replacement procedure, brake test, or hands-on product review. Identify the brake and find its manual before deciding that a pad is serviceable. If you cannot identify the system or see the relevant surfaces clearly, have a qualified bicycle mechanic inspect it.

Start with the exact brake, not a generic number

Record the brake maker and model, pad code, and whether it is a disc or rim system. Then obtain the current manual for that exact combination. A marking on the lever alone may not identify the caliper or pad.

Different makers define wear at different surfaces. SRAM’s current brake service guide says its pads are due when the combined backing plate and pad material measures 3 mm or less. That is a SRAM-specific combined measurement, not a universal friction-material limit.

Shimano’s DM-RBDBR01-04 dealer manual identifies ST-RS405, BR-RS405, and BL-RS6002 and gives 0.5 mm as the pad limit for those covered systems. That Shimano pad measurement is not the same basis as SRAM’s backing-plus-material measurement. Neither number should be transferred to another brake, pad shape, compound, or maker.

Do not substitute mileage, age, a calendar interval, or somebody else’s thickness number. Conditions, brake design, pad material, alignment, contamination, rider load, and use can change wear, while the exact manual defines the decision.

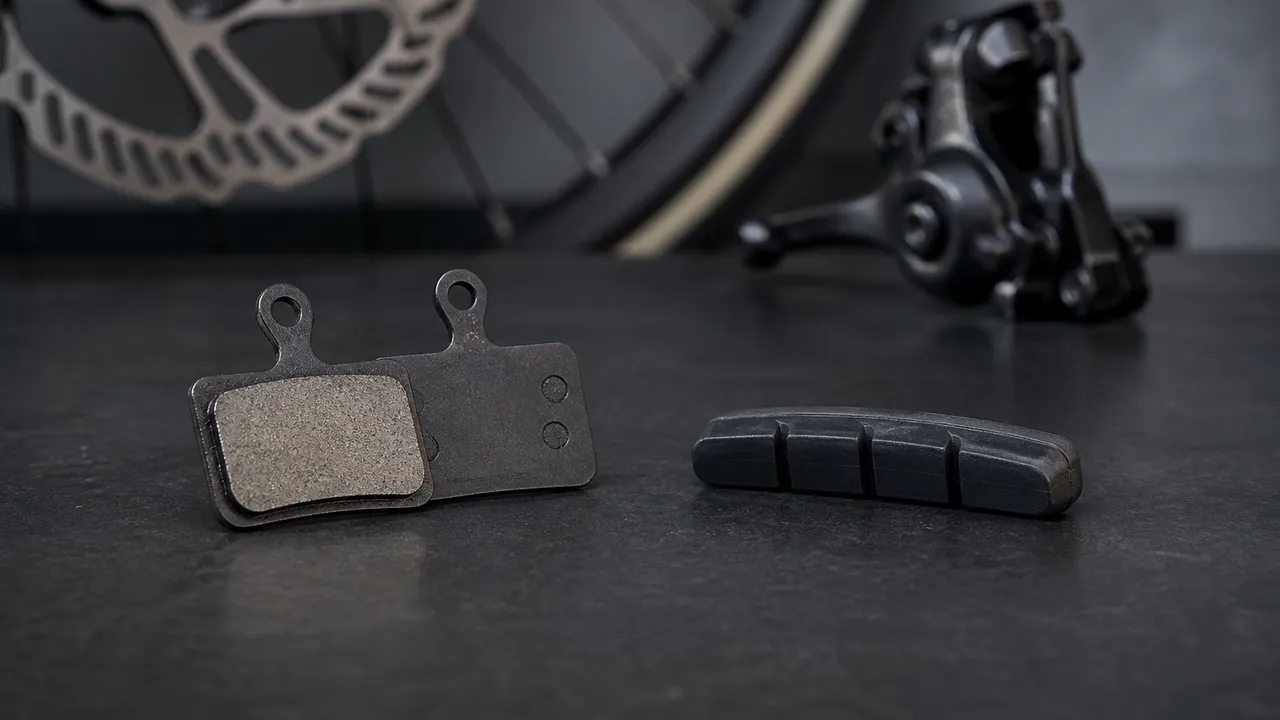

What to inspect on a disc-brake pad

A disc pad has friction material attached to a backing plate. Look at both pads and distinguish the friction layer from the metal backing rather than judging the total silhouette.

Check for:

• friction material remaining across the complete working face;
• the maker’s defined measurement surface and wear limit;
• one end or one pad appearing markedly thinner than the other;
• cracks, chips, separation, or missing material;
• oil, grease, sealant, or an unexplained film;
• a glassy or unusually shiny face that may indicate glazing;
• a bent, loose, missing, or incorrectly seated retaining spring, pin, bolt, or clip;
• contact marks or damage on the rotor and nearby caliper parts.

Uneven wear can reveal that the brake needs more than pads, but appearance alone does not identify the cause. Do not diagnose a piston, caliper, mount, or rotor from pad shape alone. Keep the bicycle out of service until the exact system is assessed.

The Shimano manual warns that oil or grease can prevent correct brake operation and directs users to consult a dealer. It also says brake noise may occur when pads reach the usable limit, but still requires checking the pad. In other words, sound is a prompt to inspect—not proof of thickness, contamination, alignment, or rotor condition.

What to inspect on a rim-brake pad

Rim brakes use several pad and holder designs. Park Tool’s rim-brake pad guide distinguishes road, threaded-stud, and smooth-stud systems, plus one-piece and cartridge pads. That identity matters because a groove, screw, or clip can have a different purpose on a different design.

Look for:

• a molded wear groove or line only when the pad maker identifies it as a wear indicator;
• friction material approaching the holder, stud, or another maker-defined limit;
• uneven, angled, cracked, hardened, or glazed material;
• embedded debris, oil, dressing, or other contamination;
• a loose pad unit or missing cartridge retention screw or clip;
• a pad that touches the tire or misses the rim’s braking track;
• rim damage, unusual scoring, or a rim wear indicator at its stated limit.

Do not confuse a cartridge pad’s rear retention groove with a wear indicator. Do not infer remaining pad material from color alone. If the rim or pad has a maker-defined wear mark, follow that manual and stop when the mark reaches its limit.

Symptoms are warnings, not diagnoses

Squeal, scraping, pulsing, reduced braking, a changed bite point, or extra lever travel can accompany worn pads. They can also accompany contamination, a damaged braking surface, loose hardware, cable or hose faults, wheel-seating problems, or another system defect.

Use symptoms to decide that an inspection is needed, not to declare that pads are the only problem. In particular:

• Grinding or visible metal contact is a stop-riding condition.
• A lever reaching the handlebar is a stop-riding condition even if the pads look thick.
• Weak or inconsistent braking is a stop-riding condition even without noise.
• Fluid around a hydraulic lever, hose, fitting, or caliper is a stop-riding condition.
• A loose pad, retainer, brake assembly, axle, or wheel is a stop-riding condition.

The CPSC bicycle FAQ places braking, fastener security, component integrity, and positive wheel retention within federal bicycle safety requirements. Those test requirements do not provide a consumer pad-wear threshold or certify a particular bicycle, but they explain why a visual pad check cannot override ineffective brakes, damaged parts, loose hardware, or an uncertain wheel.

Protect the rotor, rim, and wheel during inspection

Inspect only on a stable, stationary bicycle with braking surfaces cool. Keep fingers away from a rotating rotor and keep oils, lubricants, tire dressing, sealant, and dirty materials away from pads, rotors, and rim braking tracks.

Some pad faces cannot be verified while installed. If the maker requires wheel or pad removal for measurement, use that exact procedure or take the bicycle to a mechanic. This guide does not teach removal, replacement, piston movement, caliper adjustment, bleeding, rotor truing, or bed-in.

If a wheel is removed under the brake maker’s instructions, do not operate a hydraulic lever without the specified rotor or pad spacer in place. Reinstall and secure the wheel only by the axle, frame, fork, hub, and brake makers’ procedures. Uncertain axle seating or retention is a reason to stop, not to continue inspecting by riding.

A conservative decision checklist

Before treating the brake as serviceable, you should be able to answer yes to all of these:

1. The brake, pad, rotor or rim, and wheel system are identified.
2. The current model-specific instructions are available.
3. The pad is above its maker-defined wear limit using the maker’s measurement basis.
4. Both pads or both rim-brake sides show no unexplained uneven wear.
5. No pad or braking surface is contaminated, glazed, cracked, separated, or metal-to-metal.
6. All specified retainers and brake hardware are present and secure.
7. The rotor or rim and adjacent components show no stop-riding damage.
8. The wheel is correctly seated and positively retained.
9. The brake is effective and the lever does not reach the handlebar.
10. There are no leaks, loose parts, or unresolved symptoms.

If any answer is no or uncertain, do not ride. Ask a qualified bicycle mechanic for model-specific service. A visual guide can help recognize a reason to stop; it cannot certify the brake or replace its manual.

Bottom line

Identify the exact brake, separate friction material from its backing or holder, and use only that maker’s wear indicator and measurement basis. Compare both sides for uneven wear and check for contamination, glazing, missing retainers, and rotor, rim, or wheel faults. Treat sound and lever feel as warnings rather than proof, and stop riding whenever braking, hardware, component condition, wheel retention, or brake identity is uncertain.
