Motorized Bicycle Carburetor Guide: Fit and Troubleshooting

Match a motorized bicycle carburetor to the exact engine, intake diameter, mounting method, throttle cable, air filter, fuel system, and exhaust. Diagnose fuel leaks, cable problems, intake leaks, ignition faults, compression, and exhaust blockage before changing jets or adjustment settings.

Identify every part

Record:

• engine maker, model, cylinder, and nominal displacement;
• carburetor maker, casting marks, model, and bore;
• intake-manifold diameter and mounting interface;
• jet type and installed size;
• needle and clip position where applicable;
• float, valve, bowl gasket, and drain arrangement;
• throttle slide and cable-end type;
• choke mechanism;
• air filter and available frame clearance;
• fuel-line size, filter, valve, and routing.

Do not order by the words “80cc carburetor” alone. BikeBerry’s current 66/80cc packages list different low-profile, speed, and high-performance carburetor configurations. The current 80/100cc V1 and V2 listings also name different carburetors.

Start with safety

Work outdoors or in a properly equipped service area away from flames, sparks, heaters, cigarettes, and hot engine or exhaust parts. Gasoline vapor is flammable. Wear eye protection and follow the engine maker’s fuel-handling procedure.

Stop immediately for:

• fuel dripping or wetness;
• damaged, hard, cracked, or loose fuel line;
• a throttle that does not snap closed;
• an engine that races unexpectedly;
• intake or carburetor movement;
• abnormal heat, smoke, vibration, or detonation-like sound;
• loose exhaust, engine, or fuel-tank hardware.

Never run a gasoline engine indoors or in an attached garage. Carbon monoxide is colorless and can be fatal.

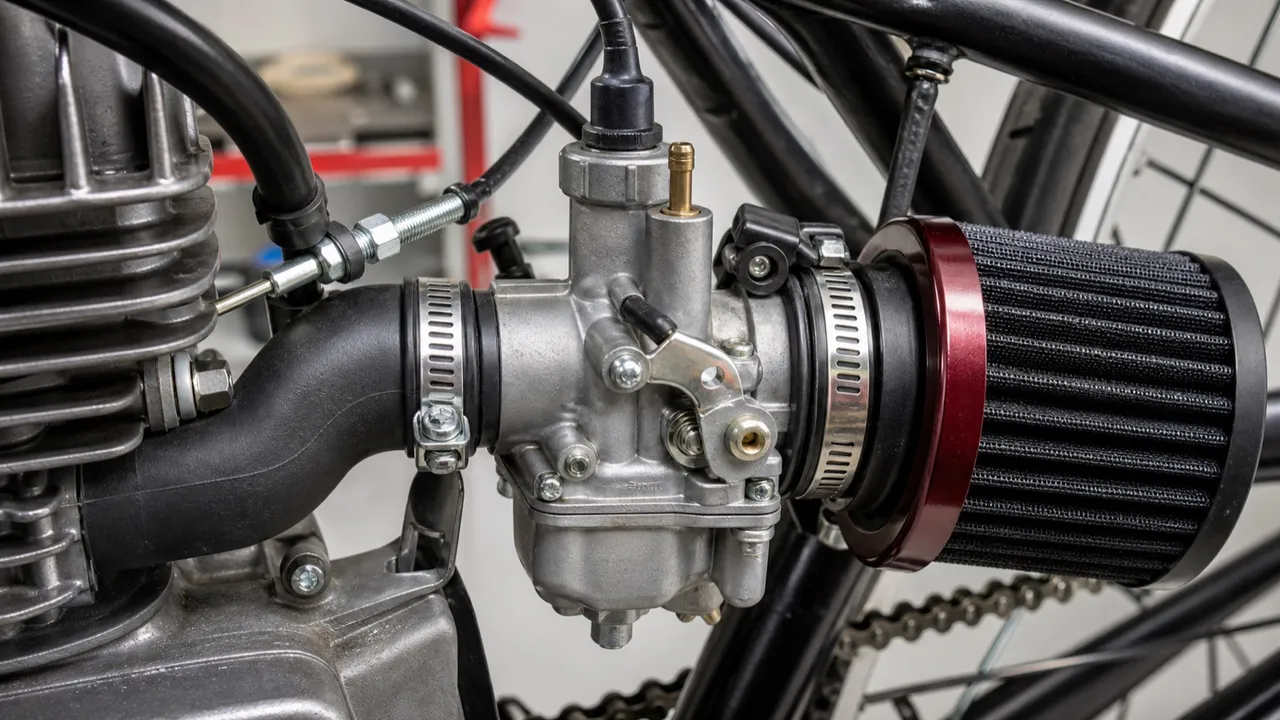

Verify the mechanical installation

A carburetor must seat squarely and securely on the correct intake. Inspect the manifold, gasket or coupler, clamp, fasteners, and supporting clearance. An intake leak can produce symptoms that look like incorrect jetting.

Turn the handlebar fully in both directions. The throttle cable must not pull, kink, rub a sharp edge, touch the exhaust, or change engine speed. Confirm free movement through the entire steering range before starting the engine.

The air filter must clear the frame and remain securely attached. Do not operate without filtration unless the manufacturer explicitly requires it for a controlled service procedure.

Diagnose before adjusting

Use the engine maker’s troubleshooting sequence. A useful inspection order is:

1. Confirm fresh fuel and the exact required oil mixture.
2. Check the tank vent, valve, filter, line, and carburetor inlet.
3. Inspect for leaks and verify float-valve operation.
4. Confirm throttle slide orientation and full return.
5. Check the choke position and operation.
6. Inspect the intake for looseness or leakage.
7. Verify the approved air filter.
8. Inspect the spark plug and ignition using the maker’s procedure.
9. Check compression if the preceding systems pass.
10. Inspect the exhaust for damage or blockage.

Changing a jet before completing these checks can hide the cause or create a new problem.

Jetting and mixture

Two-stroke fuel and air requirements can change with carburetor design, intake, air filter, exhaust, engine condition, temperature, and elevation. Use only the exact maker’s baseline and adjustment method.

Make one documented change at a time. Record the original part and setting so it can be restored. Do not drill jets, stack improvised gaskets, stretch springs, or copy a configuration from an unrelated engine.

An overly lean condition can raise temperature and damage an engine. An overly rich condition can foul the plug and impair operation. Symptoms overlap with ignition, compression, fuel-flow, and air-leak faults, which is why diagnosis matters.

When an upgraded carburetor makes sense

An alternate carburetor is reasonable only when:

• the exact engine and intake are supported;
• the throttle cable and controls are compatible;
• the manufacturer provides a baseline setup;
• the filter clears the frame;
• the fuel system and shutoff match;
• the exhaust and ignition configuration are documented;
• replacement jets, gaskets, float parts, and cables remain available;
• a qualified person can tune and inspect the system.

The BBR Stage 1 through Stage 4 comparison shows how carburetor changes become part of a larger package. Do not isolate the carburetor from the head, intake, plug, and exhaust choices.

Legal and environmental limits

Carburetor adjustment does not make a gasoline conversion emissions-compliant or legal for public use. BikeBerry states that its gasoline-operated products are not EPA or CARB compliant for public-road use and are intended for closed-course competition.

NHTSA has treated some self-propelled gasoline motorized bicycles intended for public roads as motor-driven cycles (NHTSA interpretation). Confirm the current rules for the complete machine and location.

Bottom line

Buy or adjust a carburetor only by exact engine and system compatibility. Fix leaks, cable routing, intake sealing, fuel flow, ignition, compression, and exhaust faults before tuning. For the broader build, use our two-stroke engine kit guide, motorized bicycle exhaust guide, and chain tensioner guide.
